Stainless Steel Horizontal Single-Stage Pump with Open Impeller
Model :
DWK025TImported caliber (DN) :
G1 1/4Export caliber (DN) :
G1Rated flow (m³/h) :
3Rated head (m) :
8Motor power (kw) :
0.25Material :
Stainless SteelFOB Price （USD$） :
55DWK Stainless Steel Horizontal Single-Stage Pump
Product Features:
Thermal Protector: Equipped with a thermal protector (single-phase models)
Insulation Class: Class F
Protection Class: IP55
Open Impeller: Features strong flow-through capability, capable of passing soft solids up to 8 mm in diameter.
Operating Conditions:
Medium Temperature: Standard Type (-20 to +70°C)
High-Temperature Type (-20 to +104°C)
Ambient Temperature: ≤ 50°C
Maximum Operating Pressure: 0.3 MPa
Application

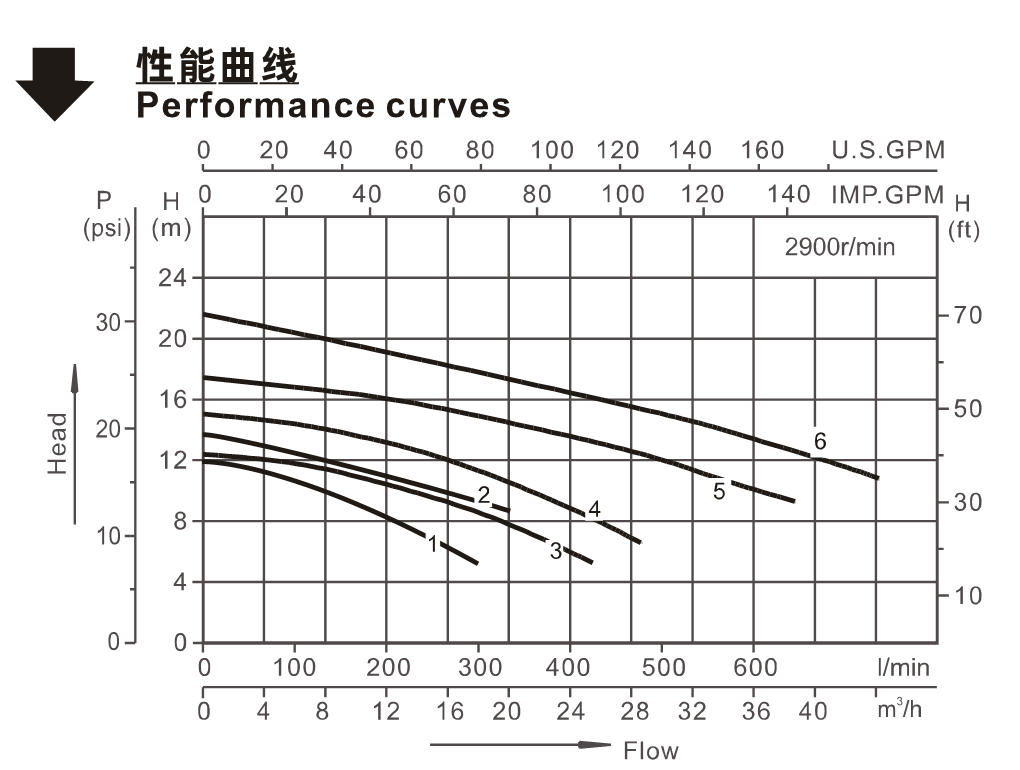

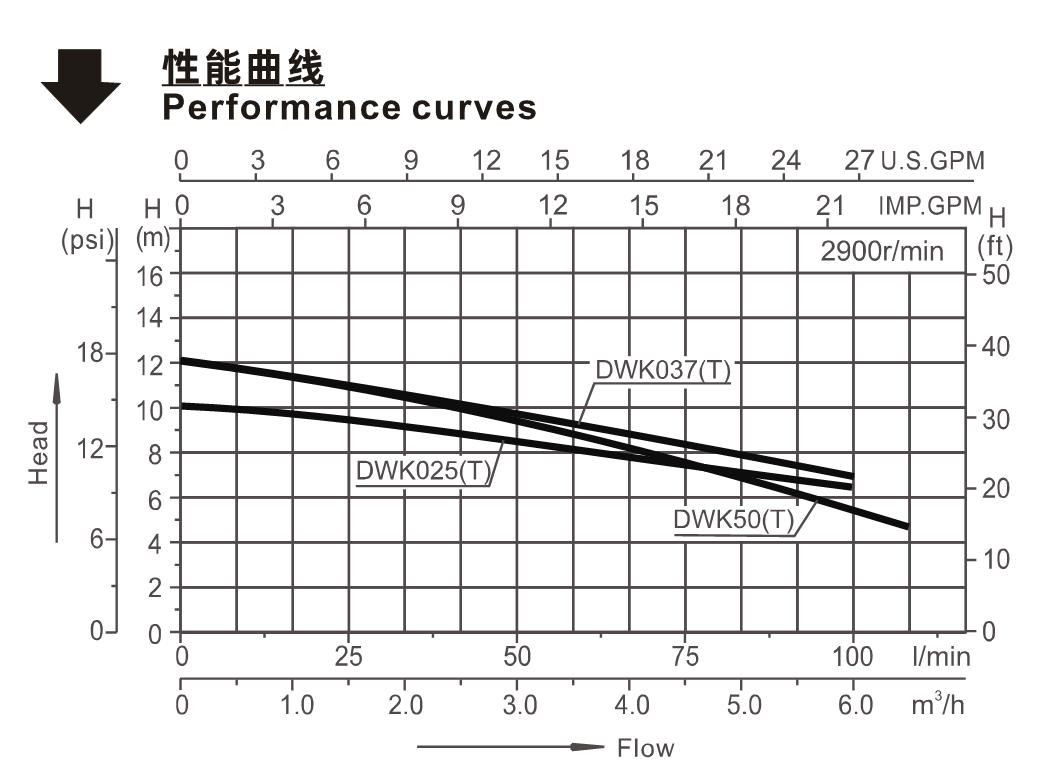

Performance Curves

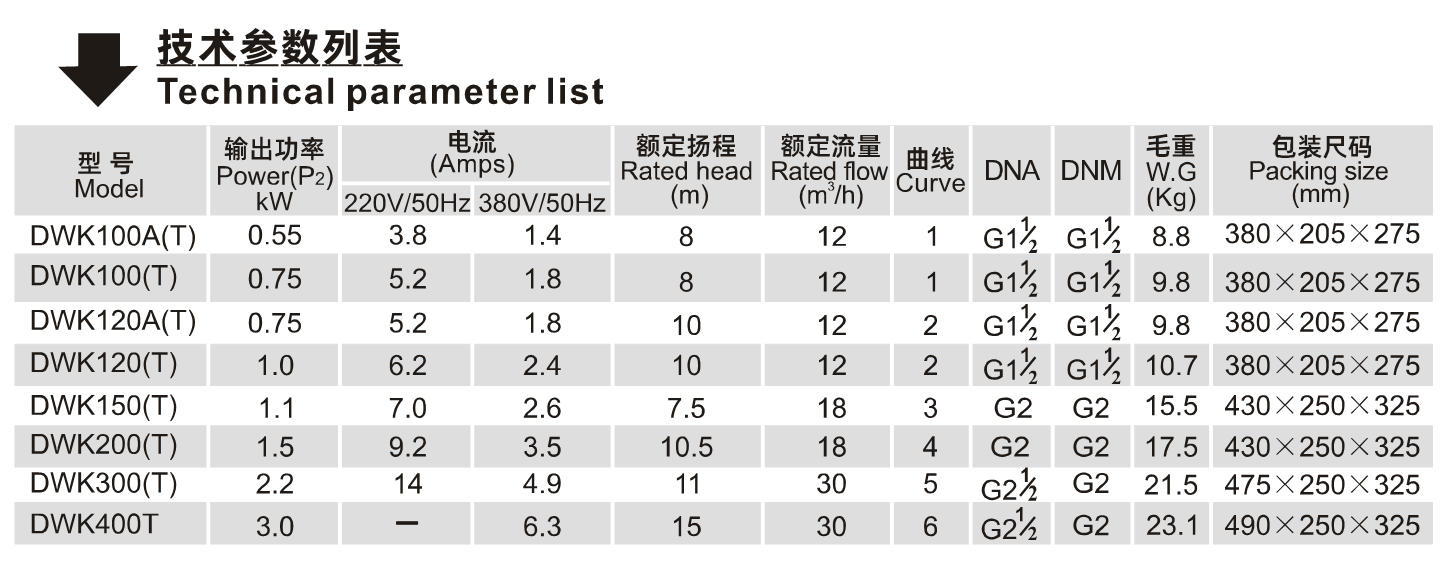

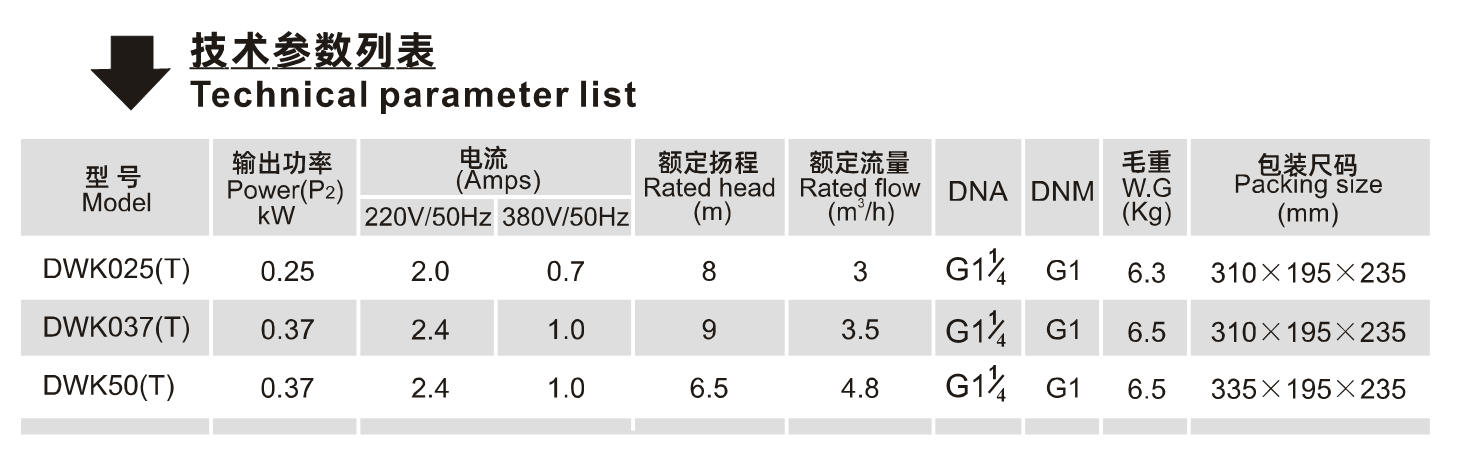

Technical parameter list

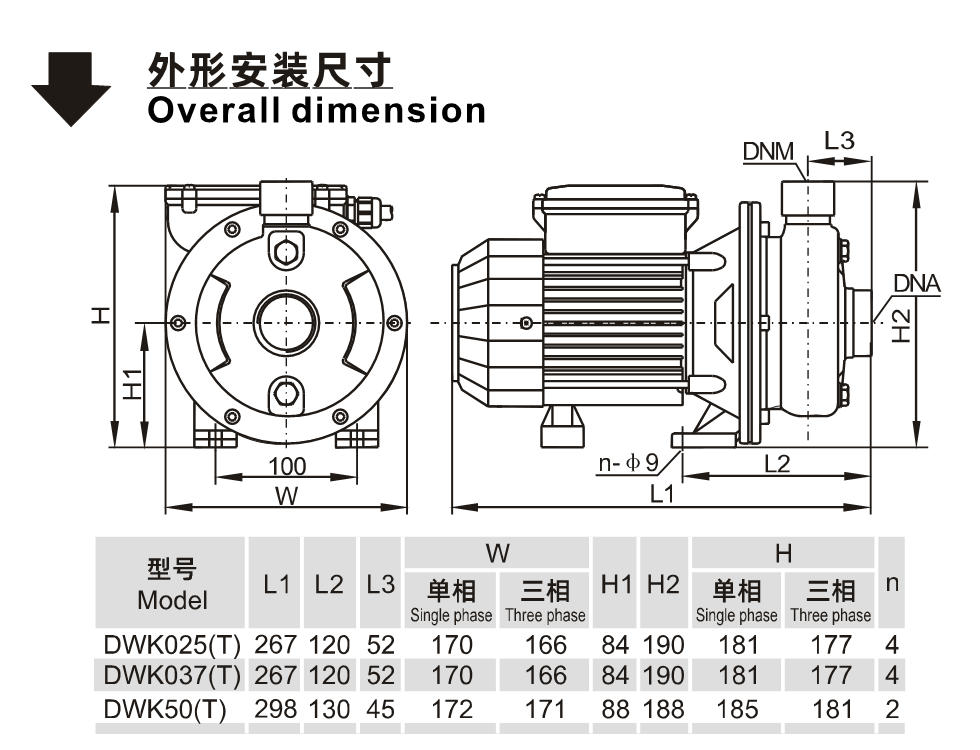

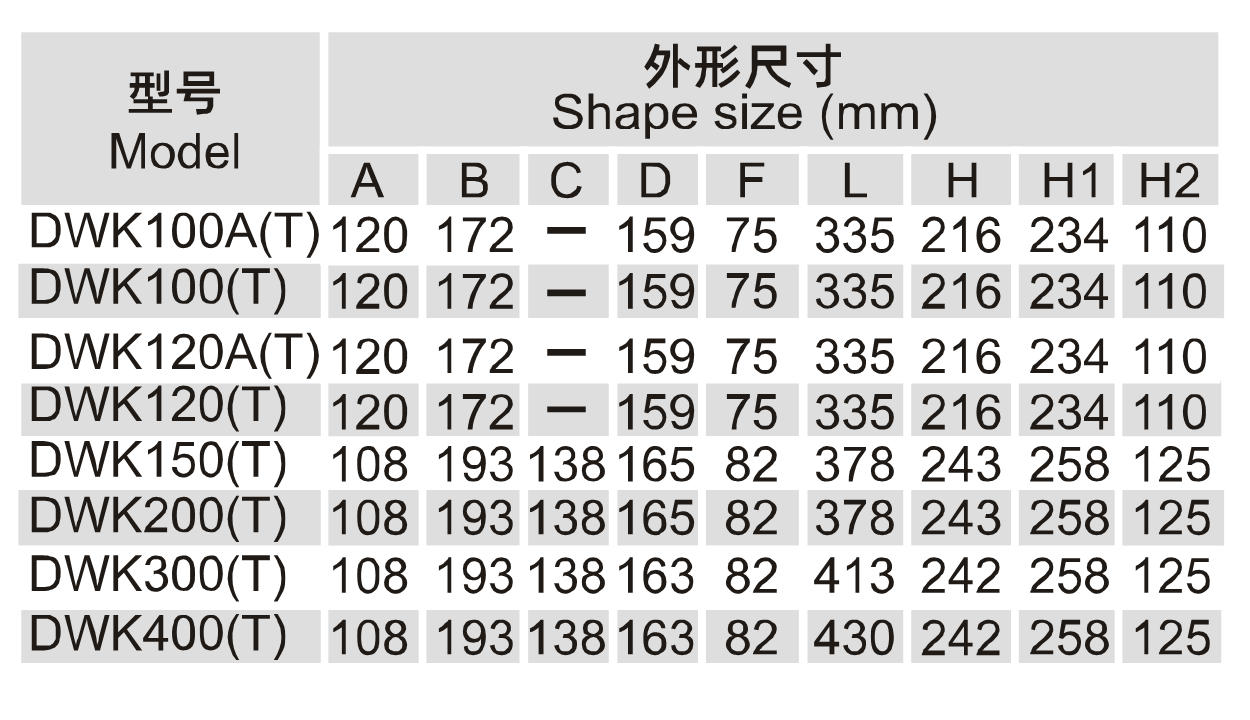

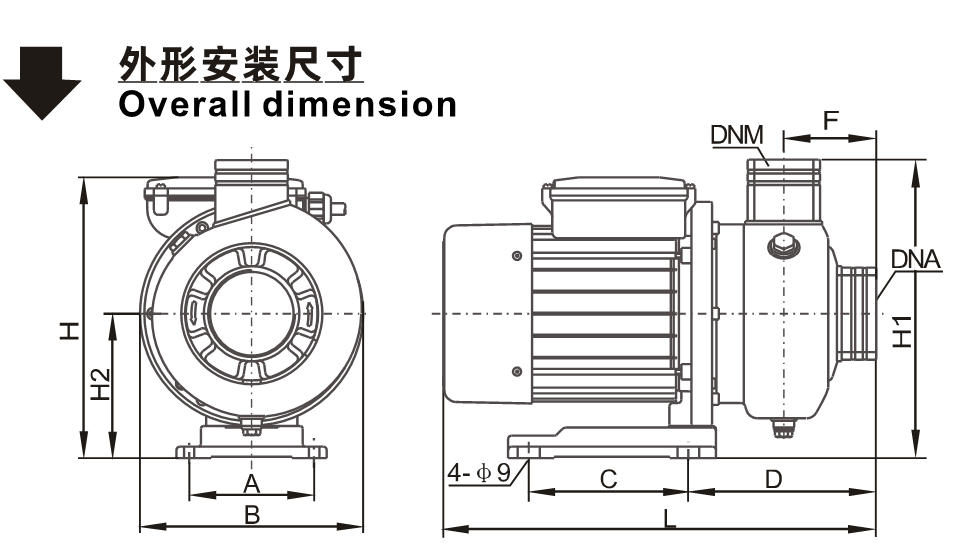

Overall dimension

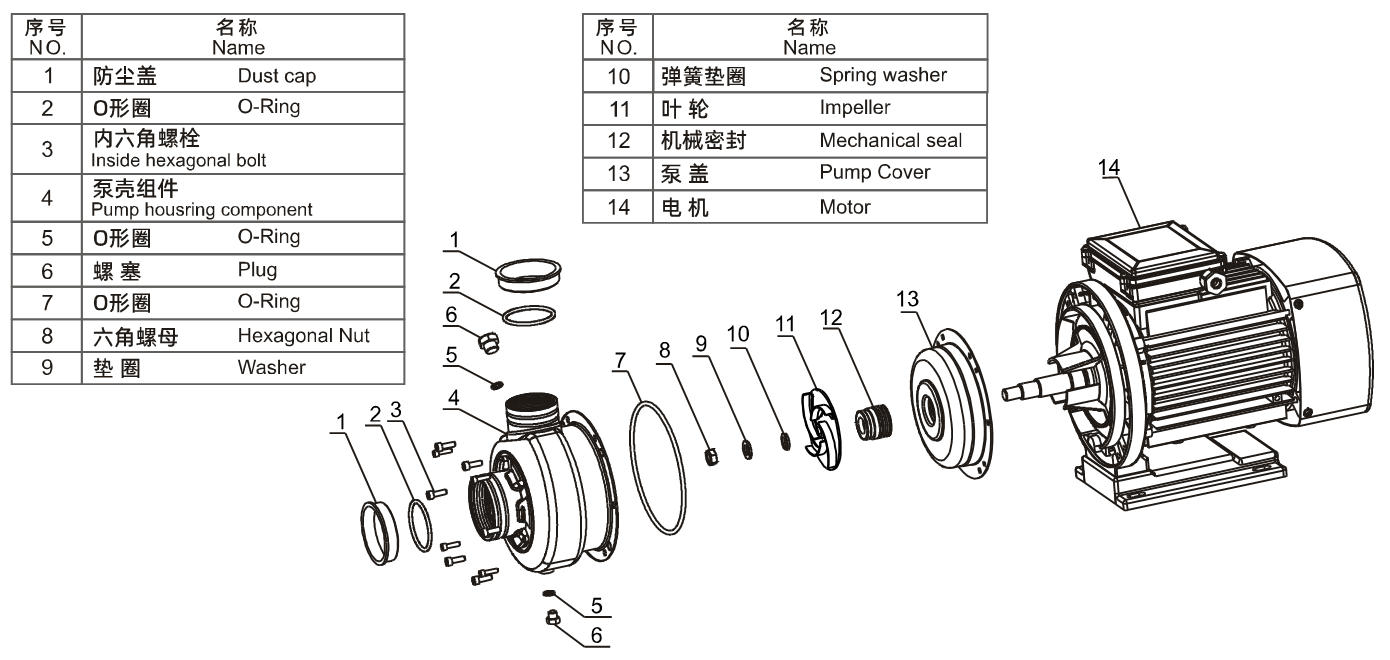

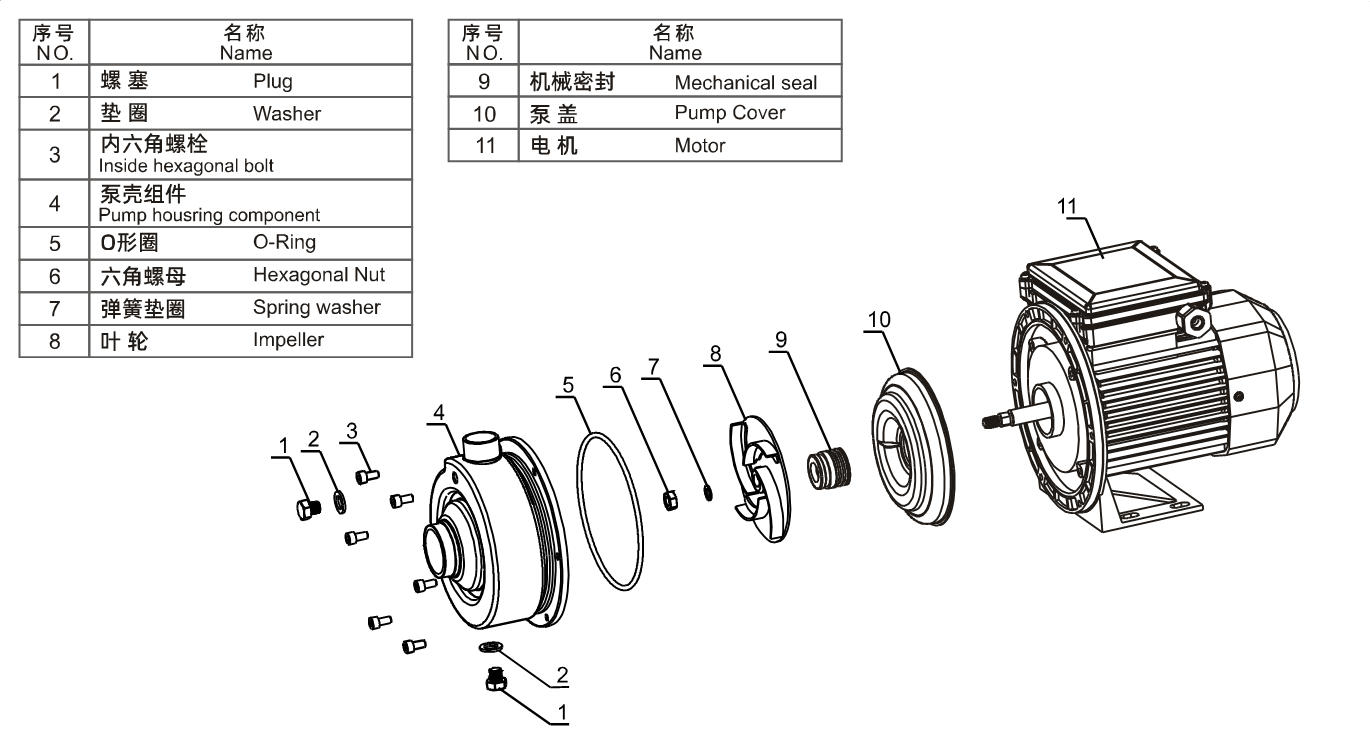

Parts drawing
Pump for hot water circulation in domestic central heating and air conditioning systems of the closed circuit pressurized type or open circuit type
