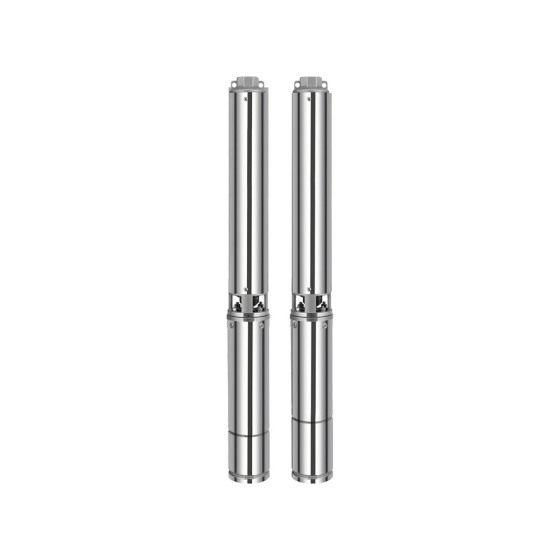

4SA series submersible deep well pump is a type of pumping equipment specifically designed for underwater operation in deep wells. Composed of a hermetically sealed motor and a pump body, these pumps work synergistically to deliver water to the surface.
Model :
4SA05/25Export caliber (DN) :
1 ¼"Rated flow (m³/h) :
0.9Rated head (m) :
113Motor speed (rpm) :
2850Rated output power（KW） :
0.754SA series submersible deep well pump
4SA series submersible deep well pump is a type of pumping equipment specifically designed for underwater operation in deep wells. Composed of a hermetically sealed motor and a pump body, these pumps work synergistically to deliver water to the surface.

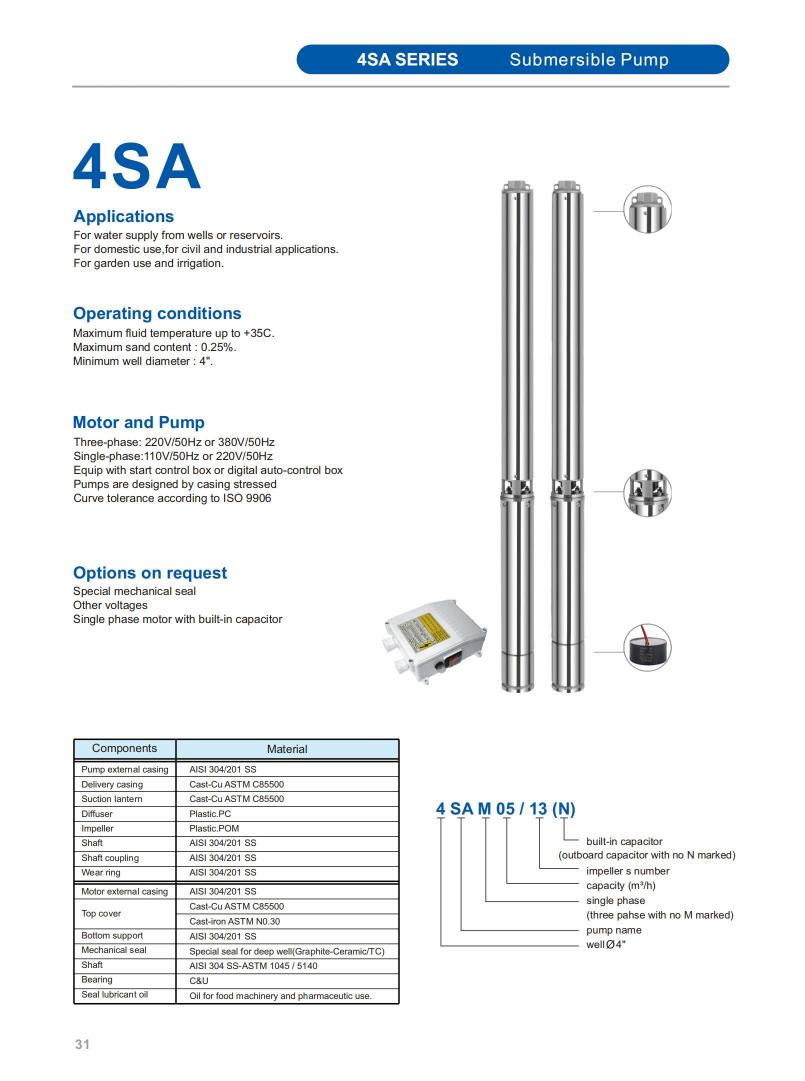

Operating conditions
Maximum fluid temperature up to +35C.
Maximum sand content : 0.25%.
Minimum well diameter : 4".
Motor and Pump
Three-phase: 220V/50Hz or 380V/50Hz
Single-phase:110V/50Hz or 220V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casting stressed
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages
Single phase motor with built-in capacitor
Applications
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
