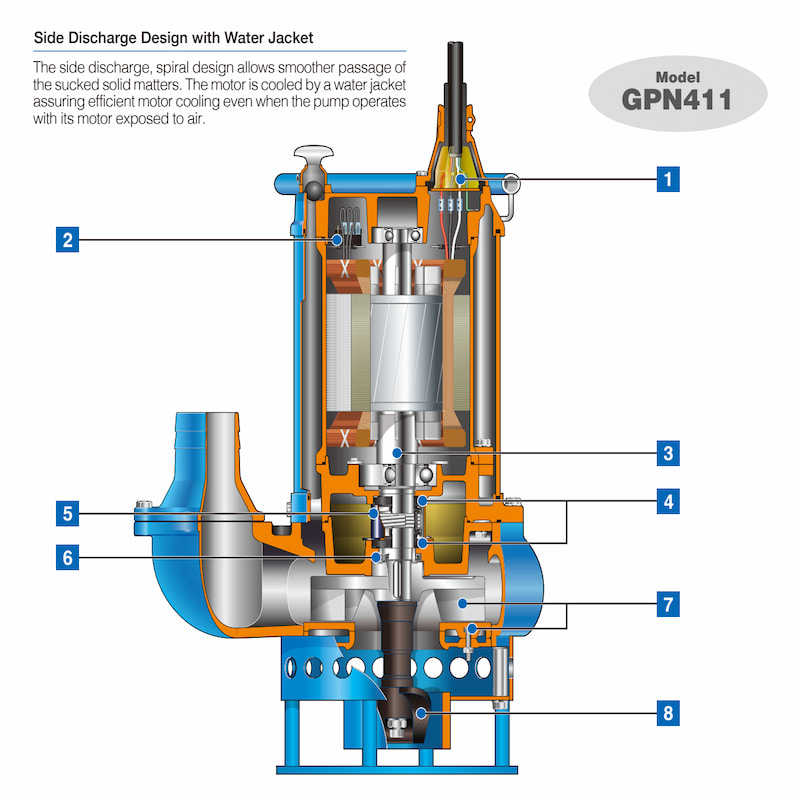

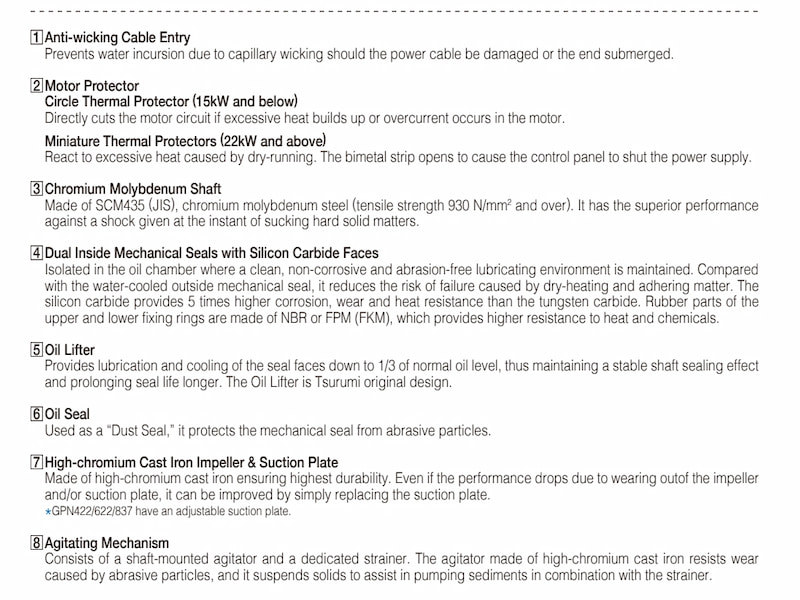

The GPN-series is a submersible three-phase high power and extra heavy-duty slurry pump driven by a 4-pole or 6-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The other wear parts such as the impeller and the suction plate are also made of high-chromium cast iron for extra durability. The side discharge, spiral design allows smoother passage of the sucked solid matters. The motor is cooled by a water jacket that assures efficient motor cooling even when it operates with its motor exposed to air.
Model :
GPN35.5Discharge Bore（mm） :
80Rated flow (m³/min) :
1Rated head (m) :
12Motor power (kw) :
5.5Weight (KG) :
160Material :
Cast ironHigh Power Slurry Pump
Technical Parameters
Flow：8m³/min
Head：32m
Discharge Bore(mm)：80 - 200
Motor Output(kW)：5.5-37
Product Description

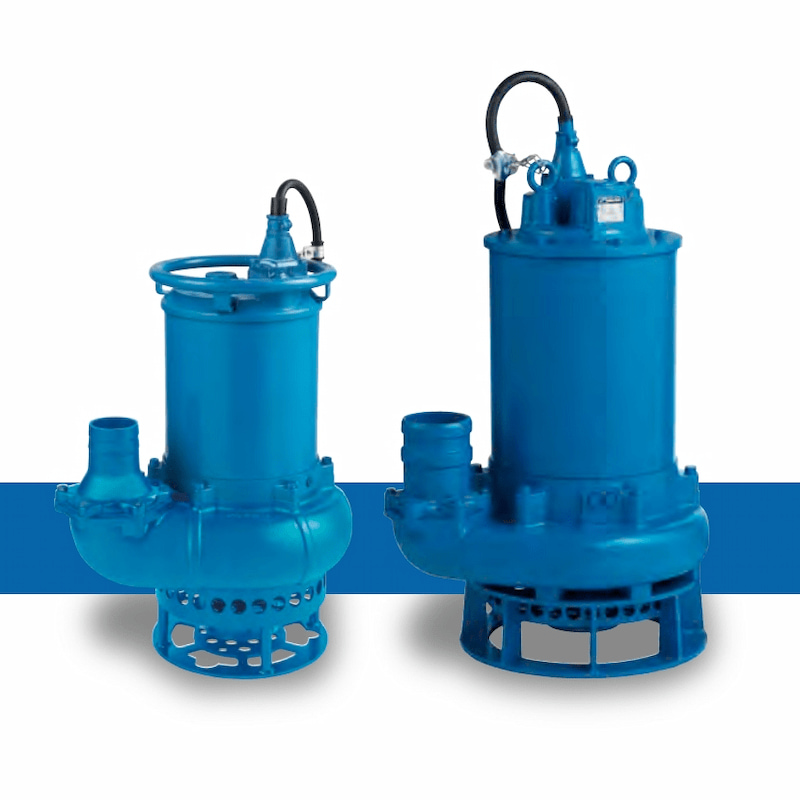

The GPN-series is a submersible high power, heavy-duty slurry pump incorporating an agitator to suspend solids enabling the pump to handle high concentration slurries. Being equipped with high-chromium cast iron wear parts, the pump delivers outstanding durability. The suction plate is adjustable enabling the pump to maintain the original performance*. The GPN utilizes a cooling water jacket to allow the pump to operate at low water levels for extended period of time without the fear of overheating.
Applications
• Transferring and draining slurry in piling works.
• Draining cement slurry or sand-carrying water in foundation works.

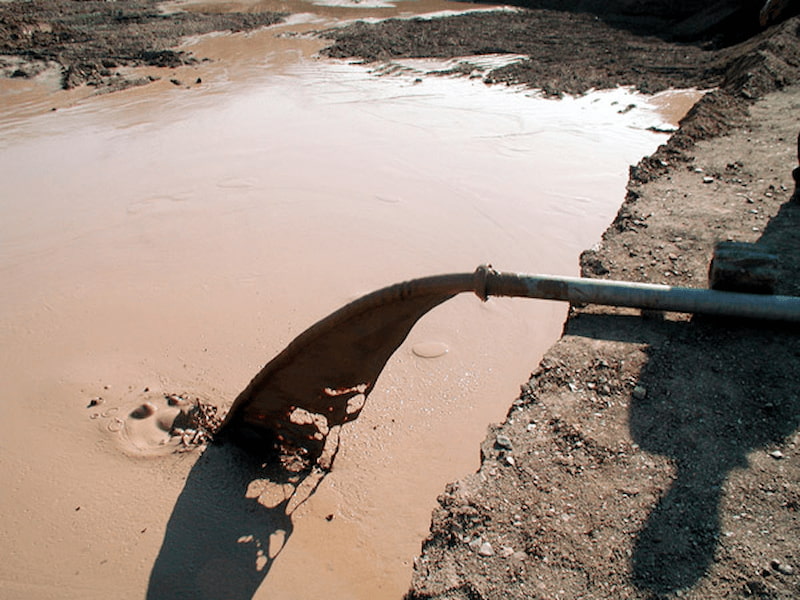

• Draining aggregate and ore wash water in mines and quarries.
• Collecting sediments in grit chambers at wastewater treatment plants.
• Pumping scale at steel mills.
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
