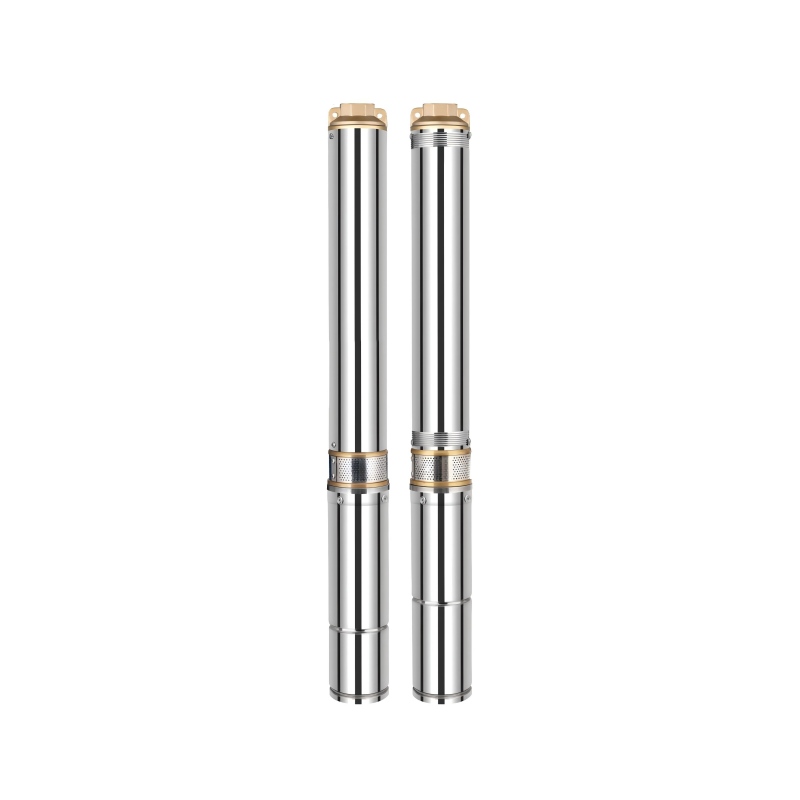

SD submersible water pump for deep well is a high-efficiency fluid transfer equipment specially tailored for deep well water extraction scenarios. It adopts an integrated submersible structure design, with pump casing made of AISI 304/201 stainless steel and impeller made of plastic. POM.

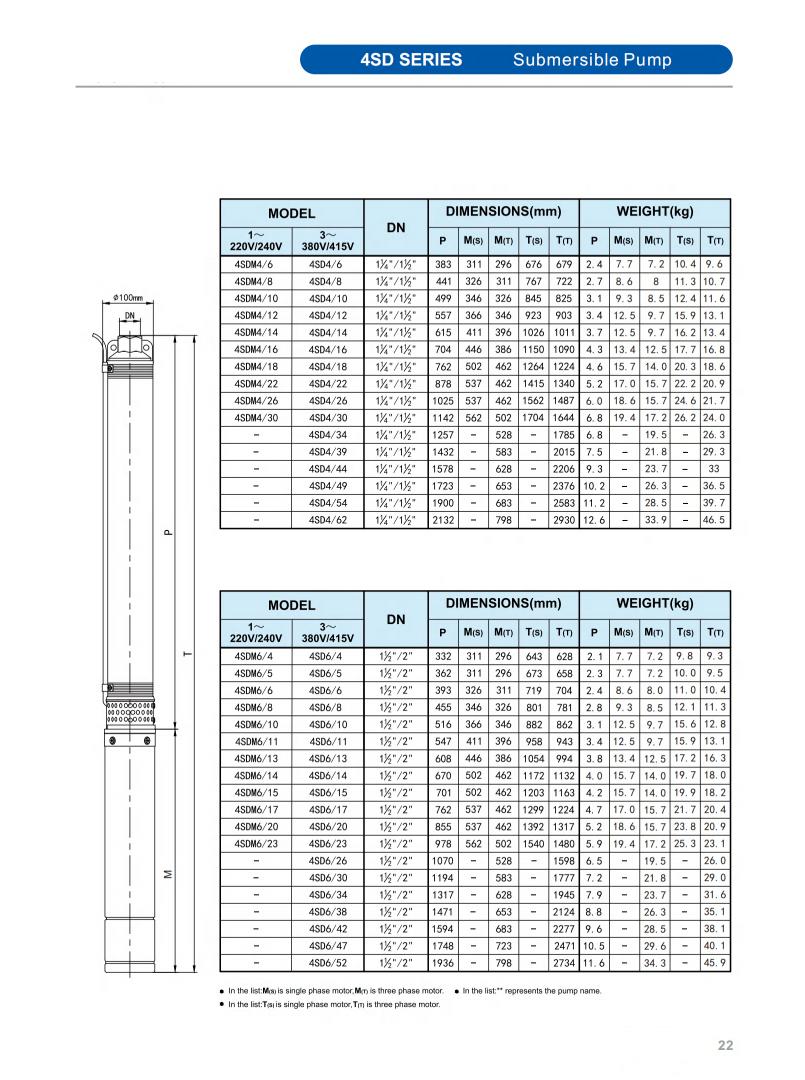

Model :
4SD2/15Export caliber (DN) :
1 ½"Rated flow (m³/h) :
1.5Rated head (m) :
73Motor speed (rpm) :
2850Rated output power（KW） :
0.55Material :
AISI304/201 SS pump external casing ；plastic.POM impeller
SD Submersible Water Pump For Deep Well
SD Submersible Water Pump For Deep Well
SD submersible water Pump for weep well is a high-efficiency fluid transfer equipment specially tailored for deep well water extraction scenarios. It adopts an integrated submersible structure design, with pump casing made of AISI 304/201 stainless steel and impeller made of plastic. POM.

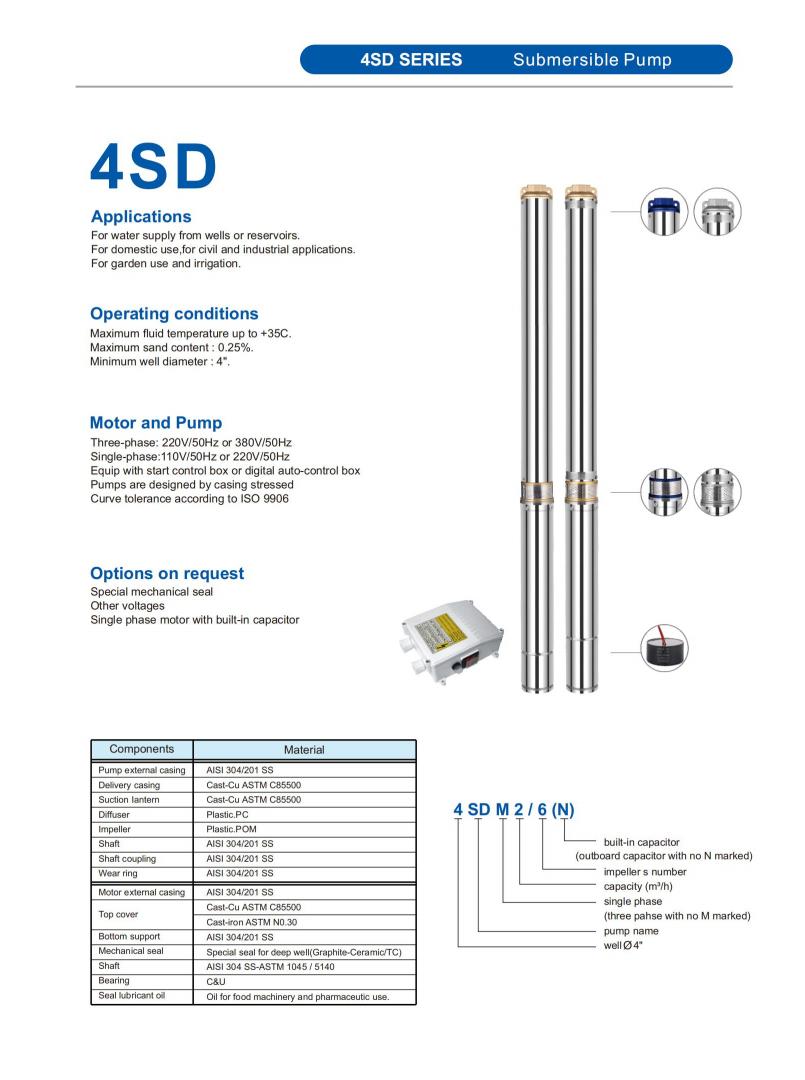

Applications
For water supply from wells or reservoirs.
For domestic use, civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +35°C.
Maximum sand content : 0.25%.
Minimum well diameter : 2.5"/3"/3.5"/4"/5"/6"
Motor and Pump
Three-phase: 380V/50Hz
Single-phase: 220V/50Hz or 220V/60Hz

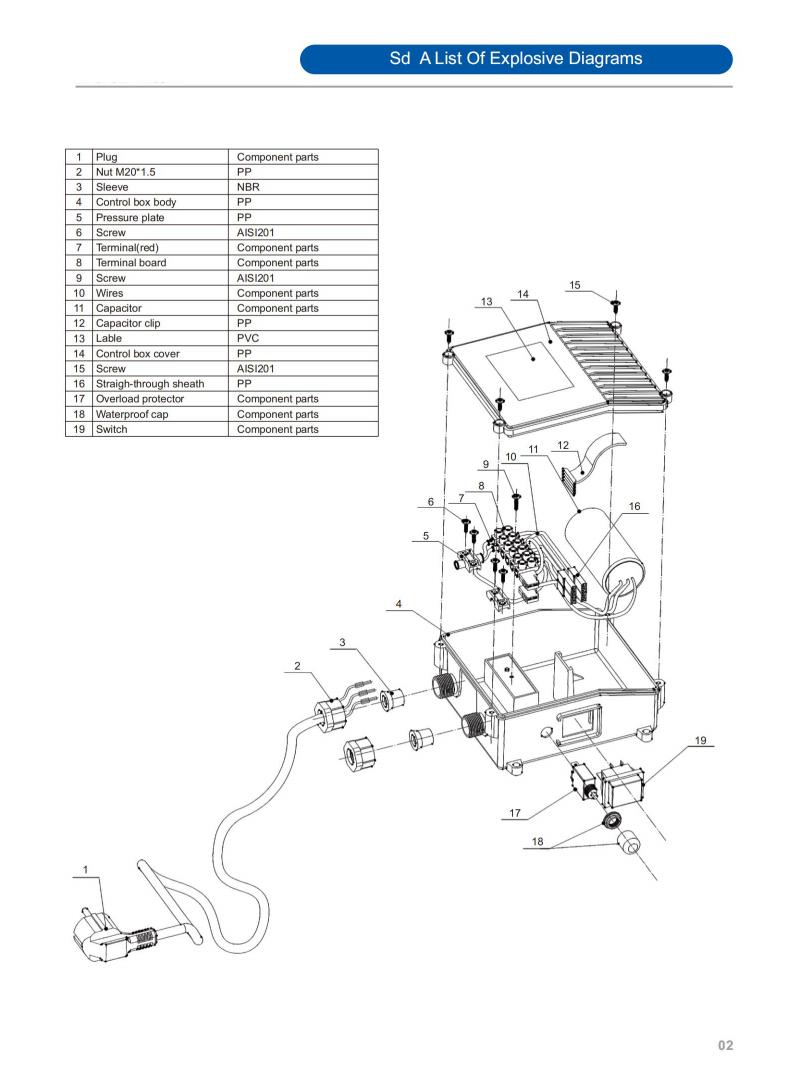

Equip with start control box or digital auto-control box
Pumps are designed by casting stressed
Curve tolerance according to ISO 9006
Options on request
Special mechanical seal
Other voltages
Single phase motor with built-in capacitor
