The POS.QJ series stainless steel submersible pump is a high-performance device specifically engineered for deep well water extraction. Boasting excellent corrosion resistance, it is suitable for diverse water supply scenarios.

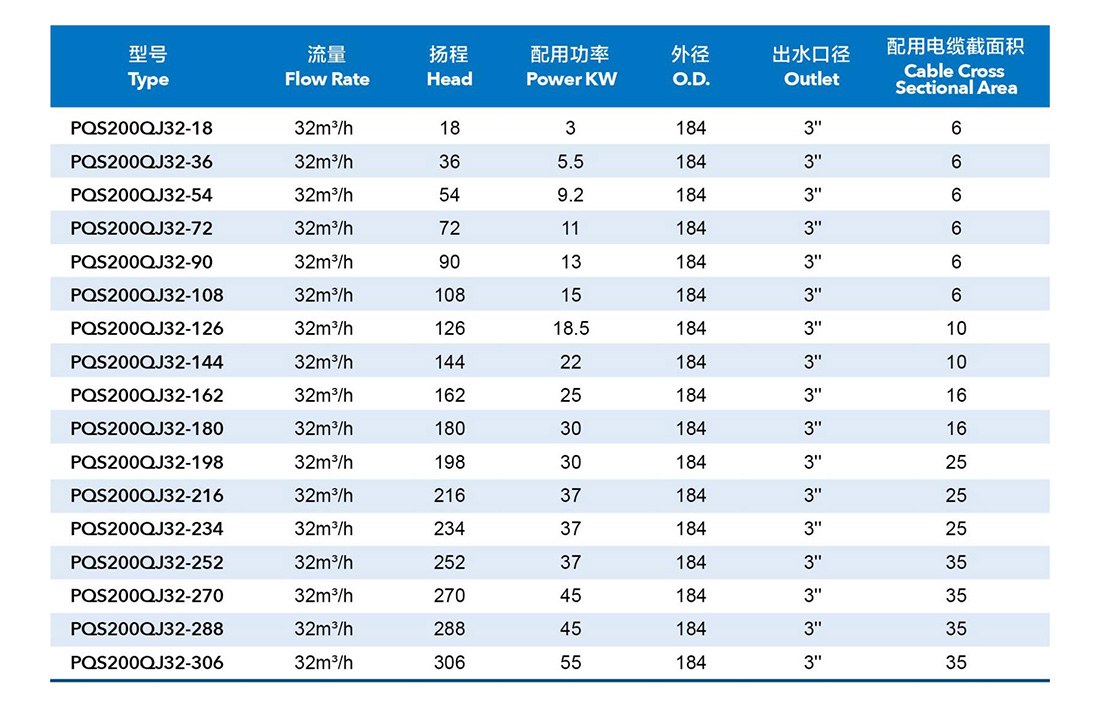

Model :
PQS200QJ32-72Imported caliber (DN) :
3"Export caliber (DN) :
3"Rated flow (m³/h) :
32Rated flow (L/h) :
3200Rated head (m) :
72Motor speed (rpm) :
2900Motor power (kw) :
11Material :
STAINLESS STEEL

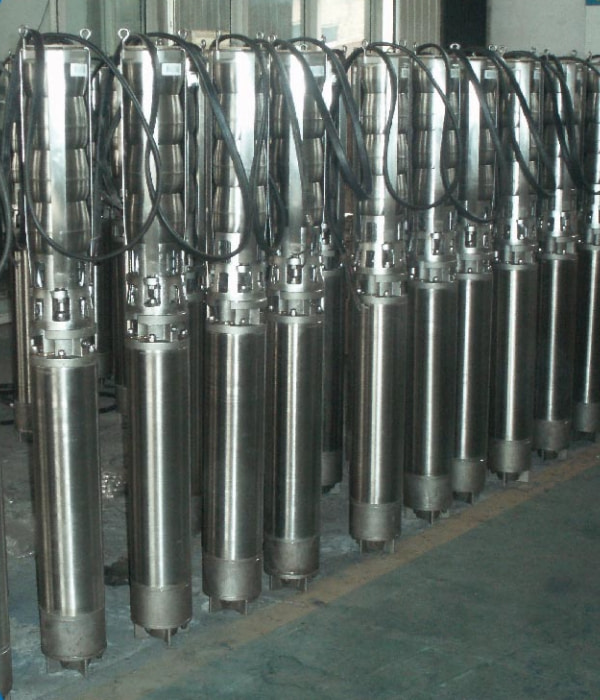

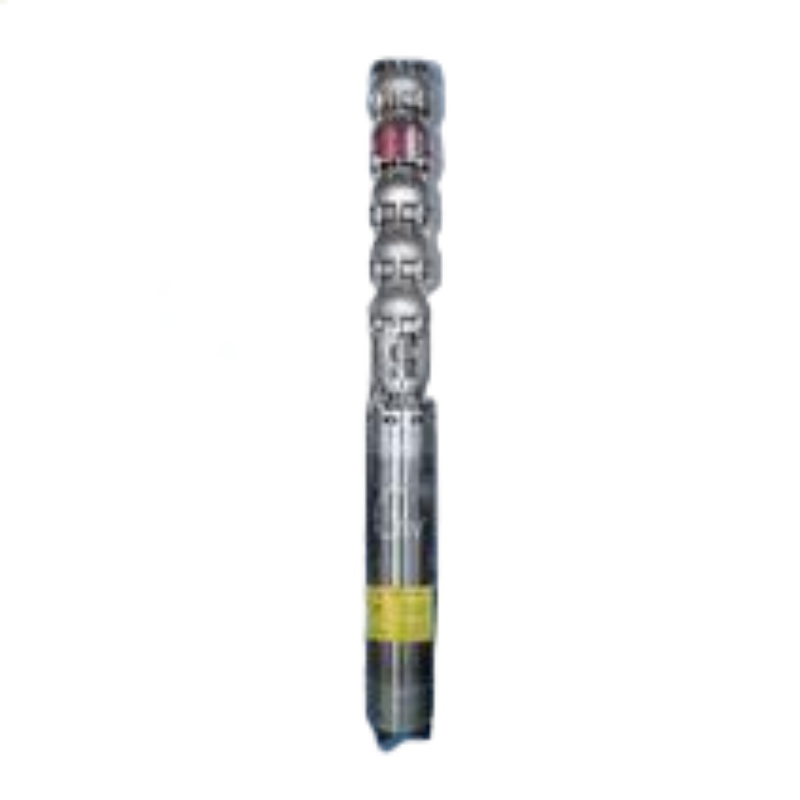

POS.QJ series stainless steel submersible pumps
Product Overview
Stainless steel submersible pump is POS.QJ well with the submersible pump into the water directly connected to one working tool. The utility model has the advantages of small volume, light weight, excellent performance, high efficiency and energy saving, convenient and reliable operation, etc.

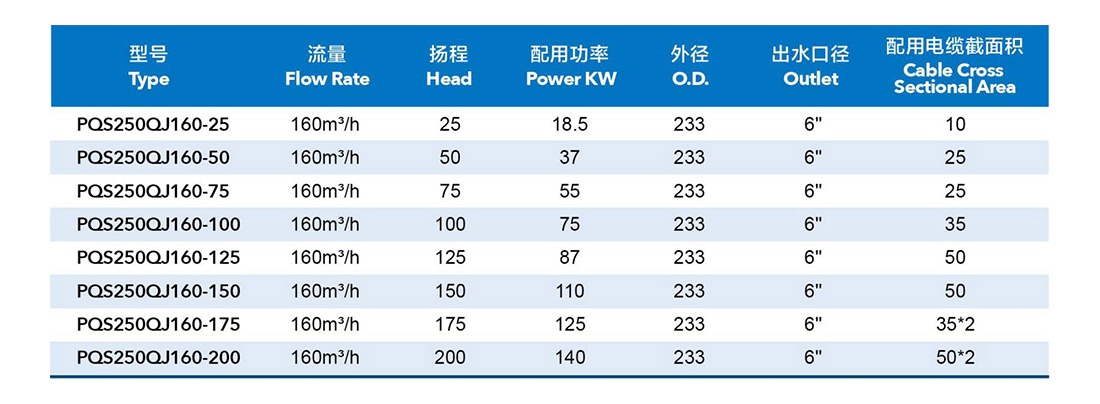

Technical Parameters:

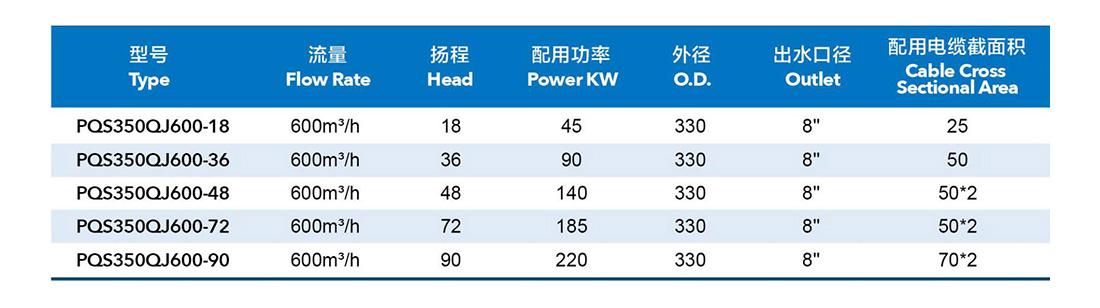

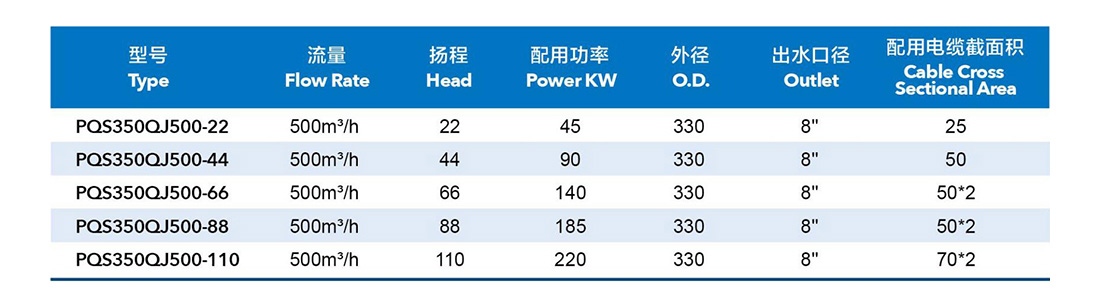

flow, Q: maximum 600m³/h
Head, H: maximum 420 m
Main Uses
The product is widely used in fountains, factories, mines, power stations, environmental protection, petroleum, chemical industry, farmland irrigation and other fields.
Operating Environment And Conditions
■Installation and maintenance electric pumps must cut off power supply
■Forbidden wet hand push and pull the switch, press button
■Regularly use 500 MΩ meter to check motor insulation resistance
■Electric pump with motor over-load, lack voltage, protection device
■Electric pump use place to have "prevent to get an electric shock" sign
■Especially in ponds, installation of electric pump: must reliable grounding
■Before installation, use electric pump carefully, read the instruction
■Before use must fill the clean water inside the motor body
■Please do not disassemble the motor without the agreement from manufacturer

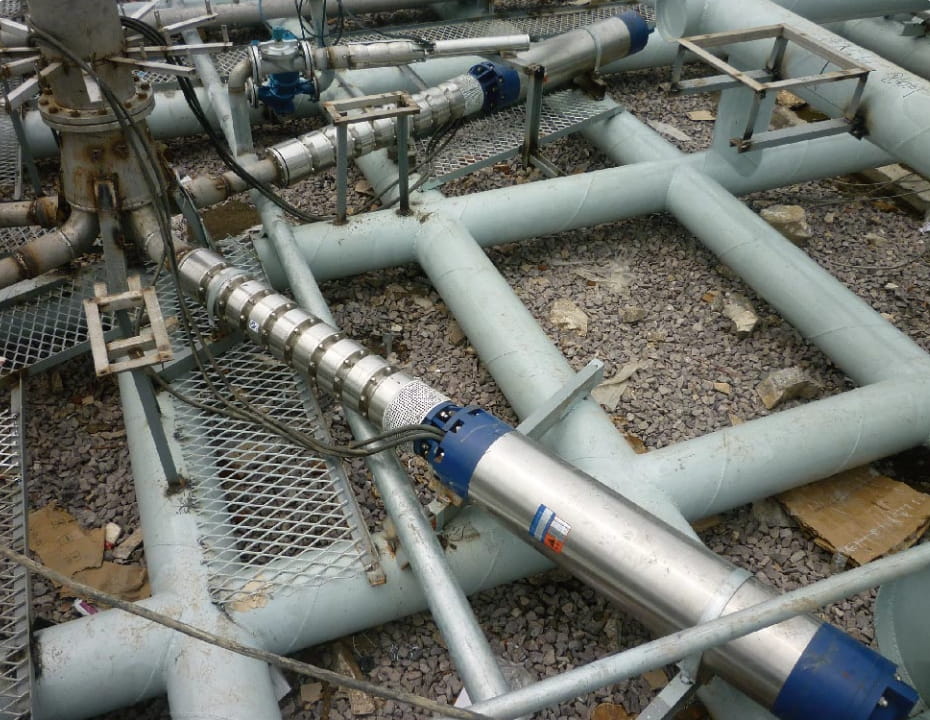

■If in the fountain project install request submersible pumps horizontal use, please operate according to horizontal installation conditions
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
Read More
Product overview Horizontal, single-machine direct-connected single-stage radial split volute, rated power conforms to EN 733 standard, with replaceable shaft sleeve and pump body sealing ring, and the design conforms to ATEX
Read More

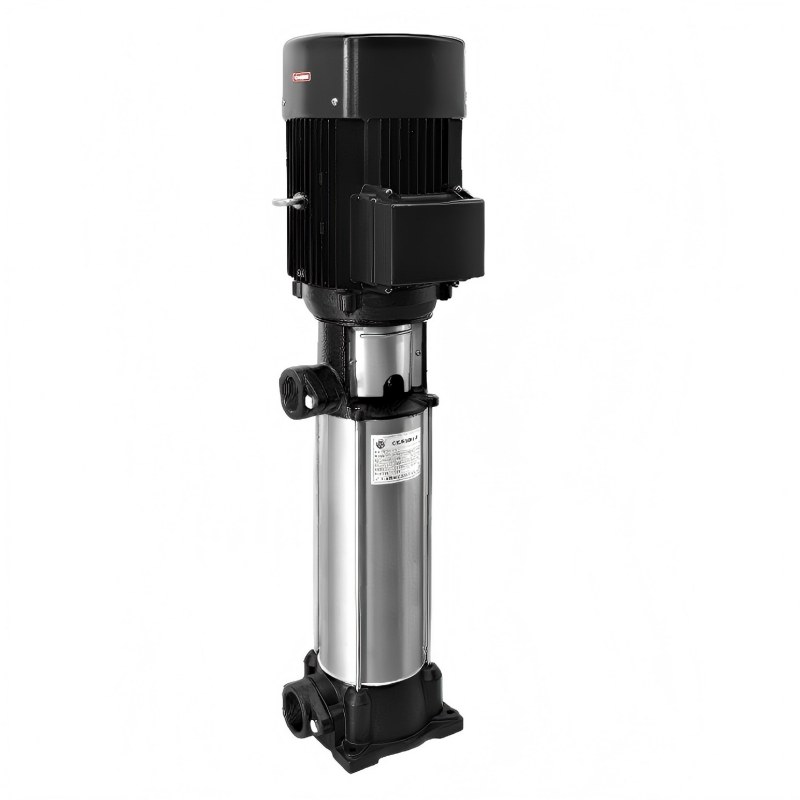

A vertically installed multistage high-pressure centrifugal pump with annular cross-section design is equipped with suction nozzles and nozzles (pipeline design) with the same nominal diameter and relatively designed positions, which are directly connected and designed according to ATEX；
