Cast Iron and Stainless Steel Double-End Face Mechanical Seal Pump
Model :
MDP15-26-2.2Rated flow (m³/h) :
15Rated head (m) :
26Motor speed (rpm) :
2900Motor power (kw) :
2.2Material :
cast ironFOB Price （USD$） :

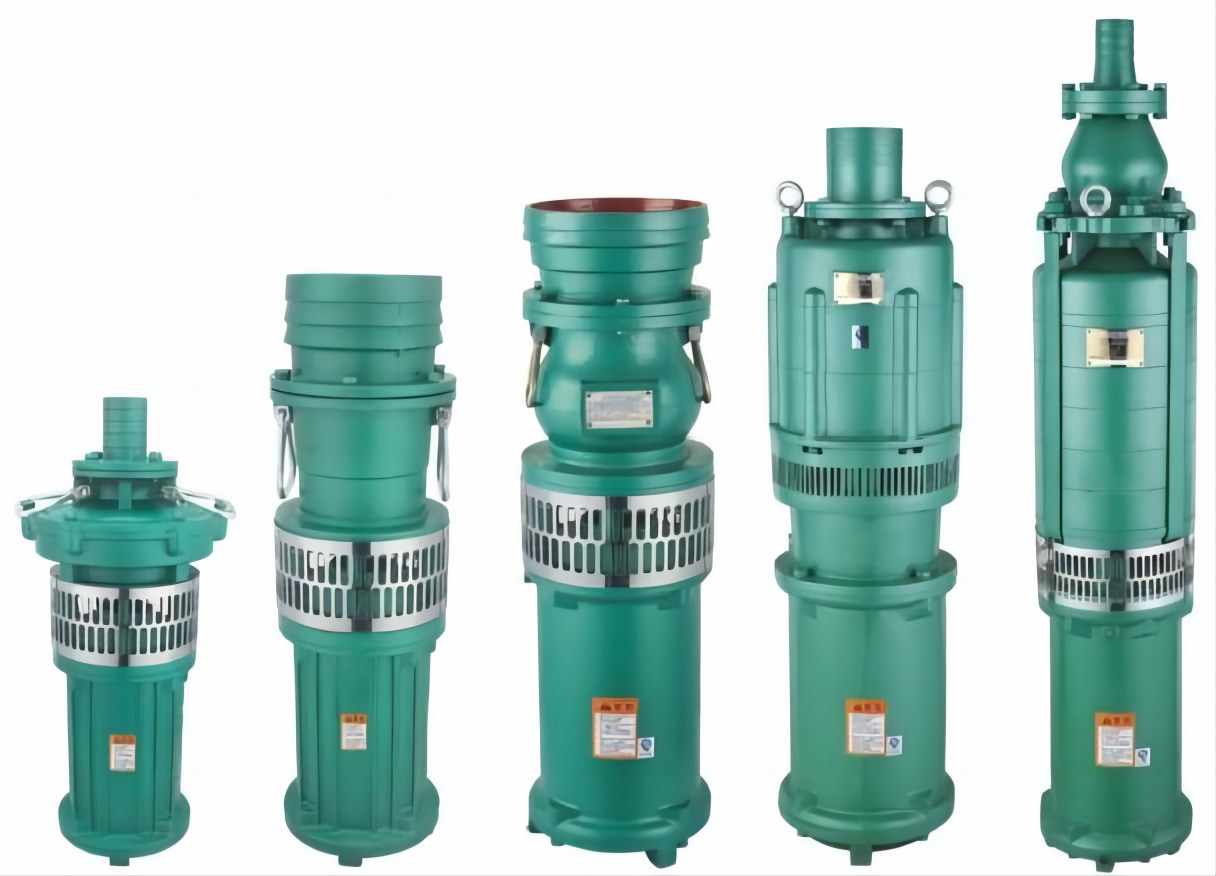

400Oil-Immersed Submersible Motor Pump
Product Overview:
MDP series oil-filled submersible pump, composed of water pump, seal, motor three parts. The motor is located in the lower part, divided into single-phase and three-phase asynchronous motor. Double end mechanical sealing is used between the water pump and the motor, and each sealing seal is sealed with O-type oil-resistant rubber sealing circle for static seal. The mechanical sealing of key parts is made of carbide carbide and high quality silicon carbide.
Parameter range:
Flow rate: 8.5~500m³ / h
Head stage: 10~200m
Material: cast iron, stainless steel is optional
Medium temperature: not more than + 50℃;
Medium containing solid impurities: the volume ratio does not exceed 0.1%, the particle size is not more than 0.2mm;
Diving depth: not more than 5m.
Use:
1. Discharge system of urban sewage treatment plant.
2. Subway, basement, civil air defense system drainage station.
3. Sewage drainage stations of enterprises, factories, hospitals and residential areas.
Matters need attention:
1. This series of electric pumps can not extract sewage, suitable for the extraction of clean river water and lake water.
2. If there is a trip phenomenon in the process of use, professionals should be asked to check in time
3. Check whether the water pump and motor part is short circuit or defective.
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
