The HS-series is a submersible single-phase portable drainage pump. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents "Air Lock" that tends to take place on vortex or semi-vortex pumps.
Model :
HSR2.4SDischarge Bore（mm） :
50Rated flow (m³/min) :
0.05Rated head (m) :
9.8Motor power (kw) :
0.4Weight (KG) :
10.8Material :
Cast iron
Portable drainage pump

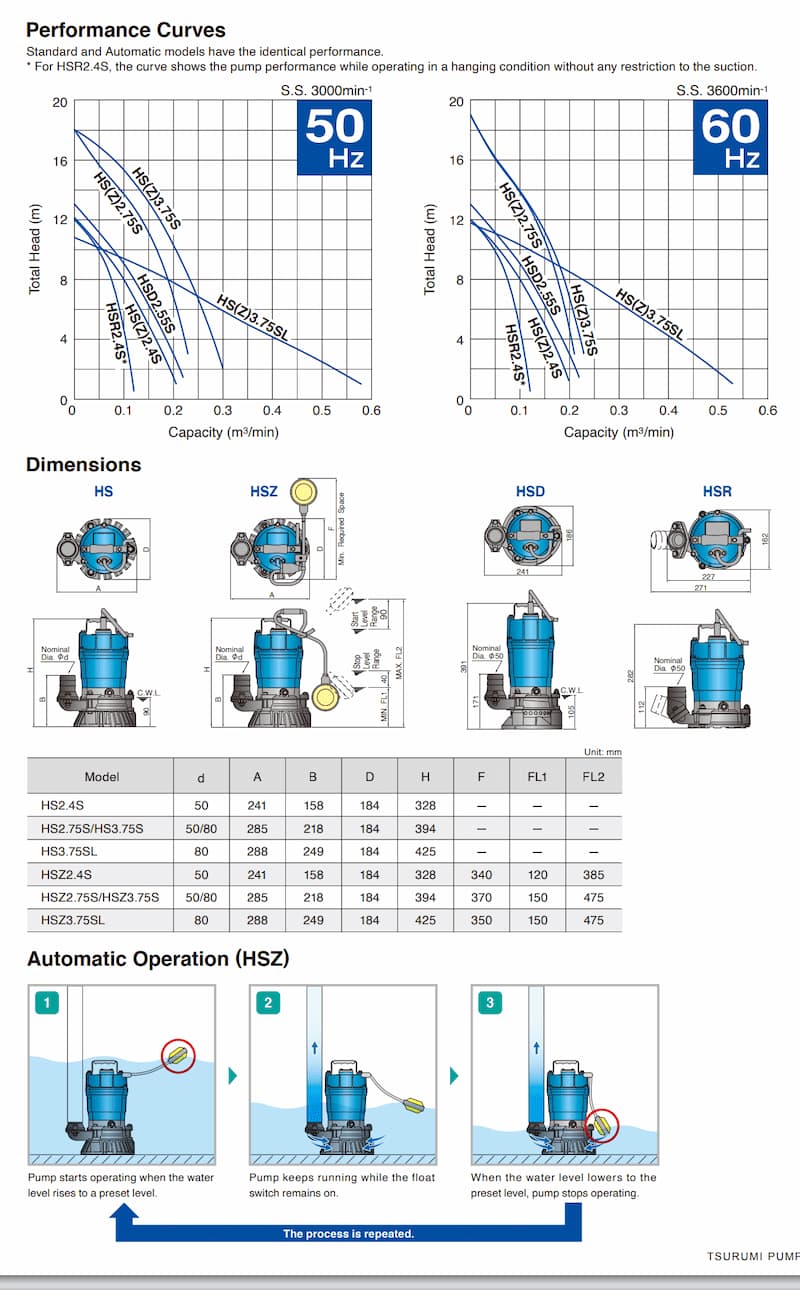

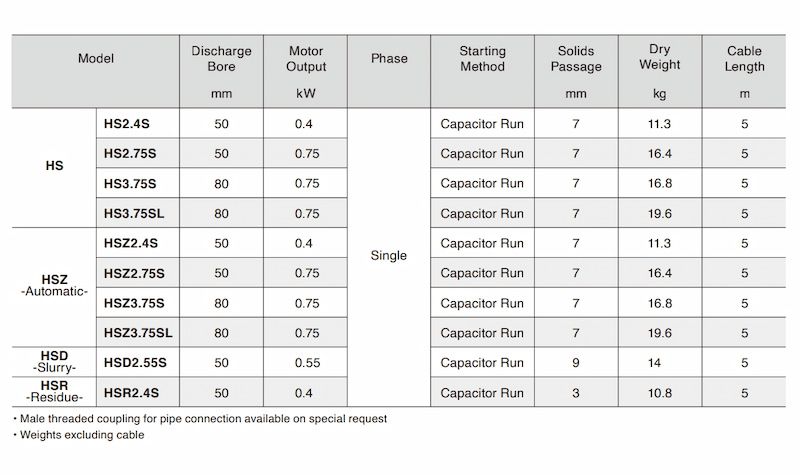

Technical Parameters
Flow：0.4m³/min
Head：16m
Discharge Bore(mm)：50 ･ 80
Motor Output(kW)：0.4 ･ 0.75
Product Description
The HS/HSZ/HSD/HSR series are submersible single-phase portable pumps. The shaft-mounted agitator prevents the air lock that tends to take place on vortex or semi-vortex pumps.* The rubber/resin-made stand protects the floor surface from scratching. The HSZ-series with a single float switch reduces power consumption and extends operating life.
The HSD pump is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The HSR pump can start operating at as low as 5mm of water level and can continue pumping up to 1mm. Additionally, the discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
