It comes with a built-in flow switch, supporting both automatic and manual modes for easy use. The unique shock-absorbing and silent design ensures continuous pressure supply with low noise, making it particularly suitable for household use. Manufactured in a European standard factory, it has a high IP44 waterproof and dustproof rating and complies with CCC standards. With an energy-saving design, it is convenient and flexible to install, and comes with a 24-month warranty.
Model :
K20/9HAImported caliber (DN) :
16Export caliber (DN) :
16Rated flow (m³/h) :
1.2Rated head (m) :
5.5Rated input power（KW） :
0.17Rated output power（KW） :
0.015Material :
Pump body: Cast iron / Impeller: Engineering plasticAutomatic Hot Water Pressure Boosting Pump

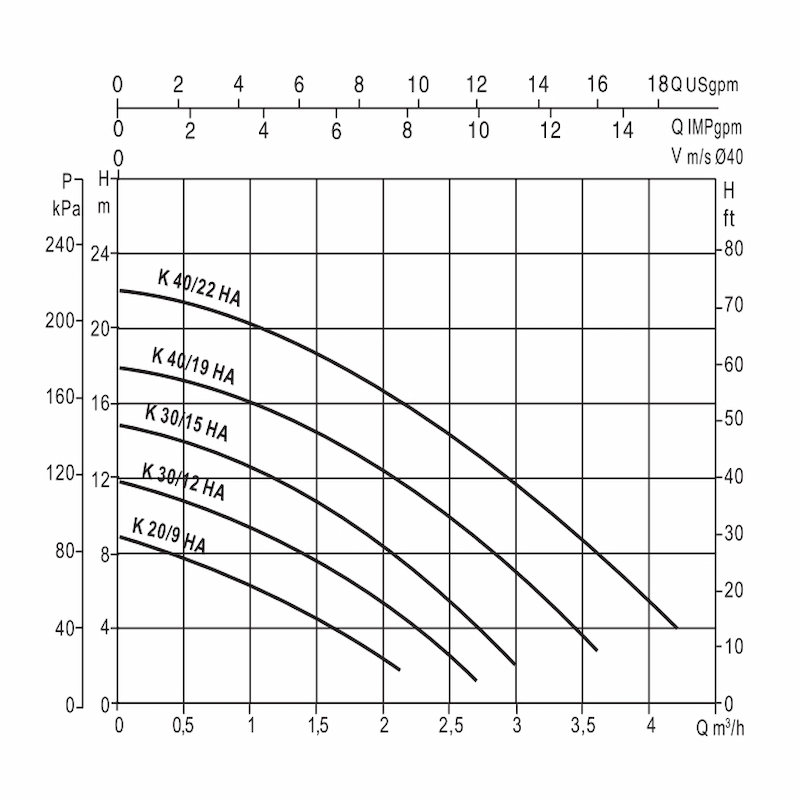

Technical parameters:
Working scope: maximum flow: 4.2m3/h.
Maximum lift: 22m
Maximum working pressure: 10bar
Liquid temperature range: 0℃-+100℃
Product introduction:
Automatic hot water booster pump KHA series, which supports automatic and manual modes, continuous pressure supply and low noise.
Scope of application:
Solar hot water pressurization
Domestic water lifting and pressurization
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
