The B-series is a basic heavy-duty, submersible sewage and wastewater pumps providing excellent solids matter passing capability with reliable operation. They offer a wide lineup of discharge bores ranging from 50 - 300 mm and motor outputs of 0.4 - 75 kW, and come in a variety of models including high head type and single-phase BP models that can handle high volume pumping demand. The B-series pumps have accumulated various track record and know-how in a wide range of industrial and water treatment applications for many years.
Model :
50B2.75Discharge Bore（mm） :
50Rated flow (m³/min) :
0.2Rated head (m) :
8Motor power (kw) :
0.75Weight (KG) :
25Material :
Cast ironSubmersible Sewage Pumps with Channel Impeller
Technical Parameters
Flow：34m³/h
Head：12m
Product Description

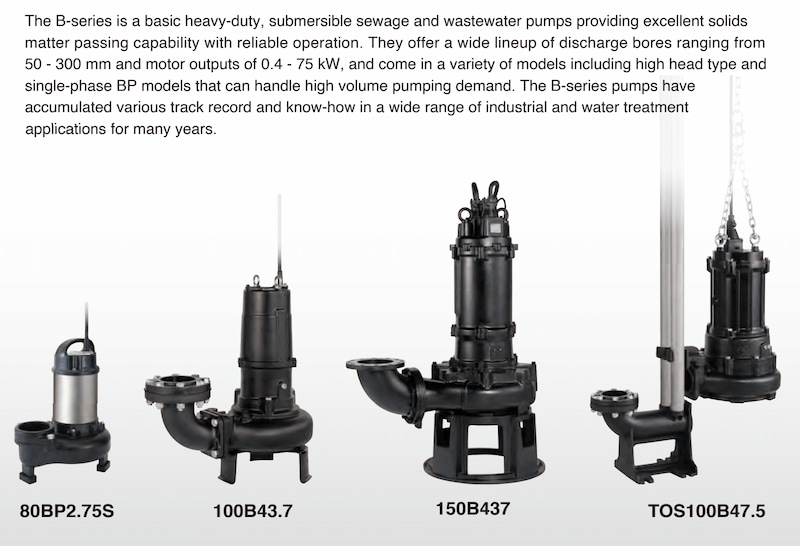

Tsurumi B-series pumps are basic heavy-duty, submersible sewage and wastewater pumps providing excellent solids matter passing capability with reliable operation.
The B-series pumps have accumulated various track record and know-how in a wide range of industrial and water treatment applications for many years. Using a channel impeller, they are designed to minimize trouble due to clogged solids and fibrous matter in pumped fluids.

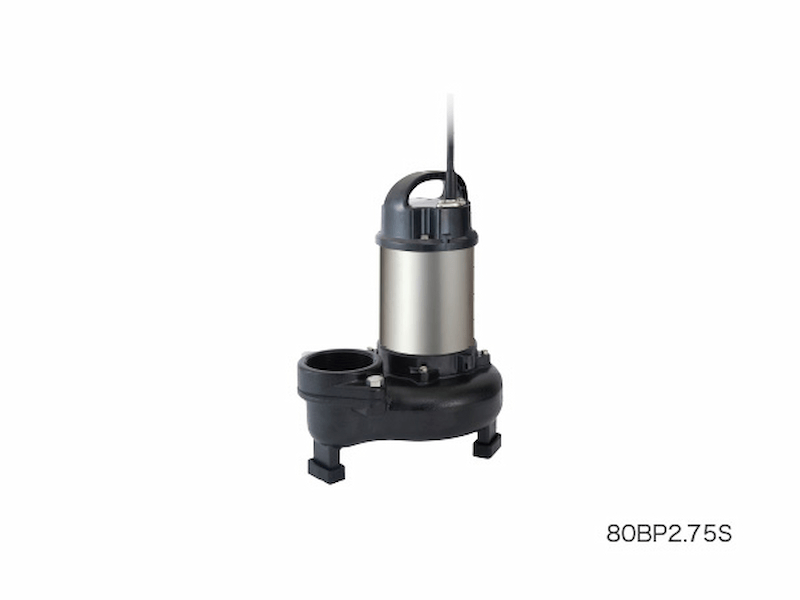

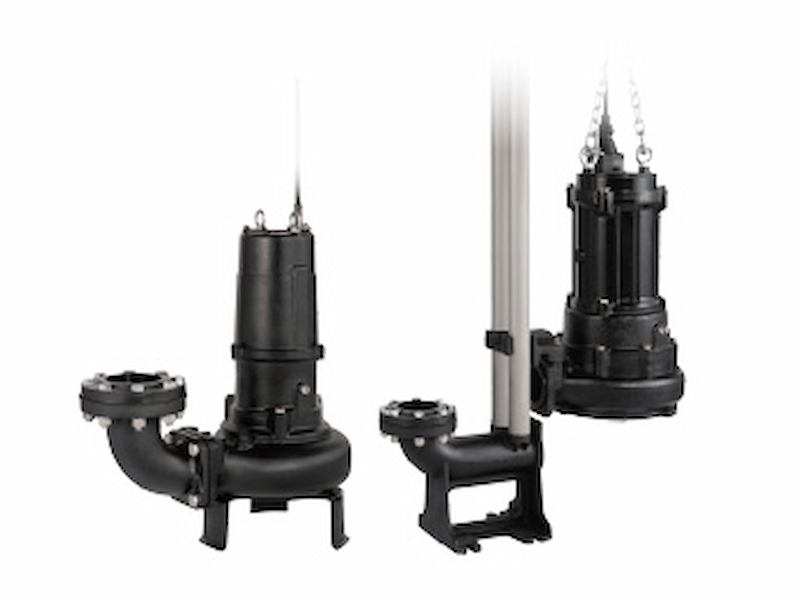

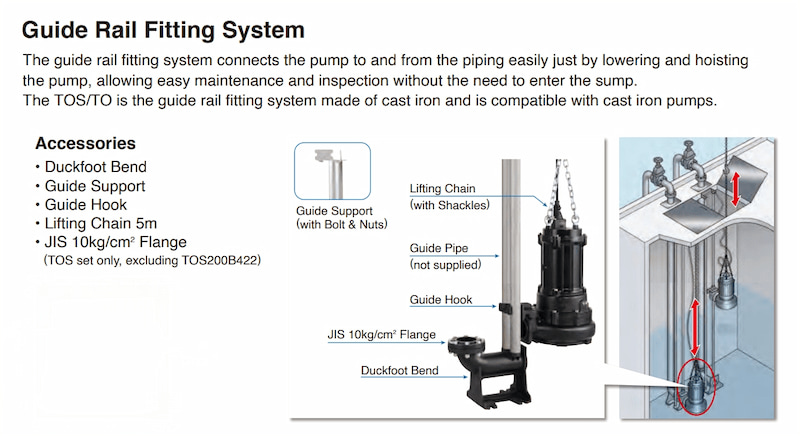

The B-series offers a wide lineup of discharge bores ranging from 50 - 300 mm and motor outputs of 0.4 - 75 kW, and comes in a variety of models including high head type and single-phase BP models that can handle high volume pumping demand. Particularly, the high head type pumps can satisfy the needs of the building equipment market that is oriented to saving energy and conserving water, and fit other high head market applications.Moreover, the pumps can be used with Tsurumi’s guide rail fitting device that facilitates installation and maintenance (except for BP models).
Tsurumi pumps come packed with a number of original technologies we have developed and honed over years of research, including an anti-wicking cable, motor protector, dual inside mechanical seals with silicon carbide faces and Oil Lifter. Highly reliable and durable,Tsurumi pumps are designed and built for sound quality and prolonged continuous operation.
The B-series pumps can help you keep your systems – whether for wastewater drainage,water treatment, flood control, irrigation and recreation facilities – running stably and greatly reduce your maintenance costs.
Additionally, the pumps can be specially configured with discharge bores of 400 mm and greater, or as an option, adapted for dry pit applications where they can be installed indoors and outside a tank, as well as for seawater or high temperature liquids, paving the way for their use at shipyards and power plants for water intake and discharge.
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
