Non-self-priming multi-stage water pumps. The impellers, stage chambers and pump casings are made of 1.4301/1.4404 stainless steel.
Model :
MHI202-1Imported caliber (DN) :
G 1Export caliber (DN) :
G 1Rated flow (m³/h) :
3Rated head (m) :
16Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
304Multi-stage Horizontal High-pressure Centrifugal Pump
Technical parameters:
Flow rate, q: max. 216m3/h
Head, h: up to 59m.
Pressure, p: max. 10bar
Temperature, t:-15℃-+110℃

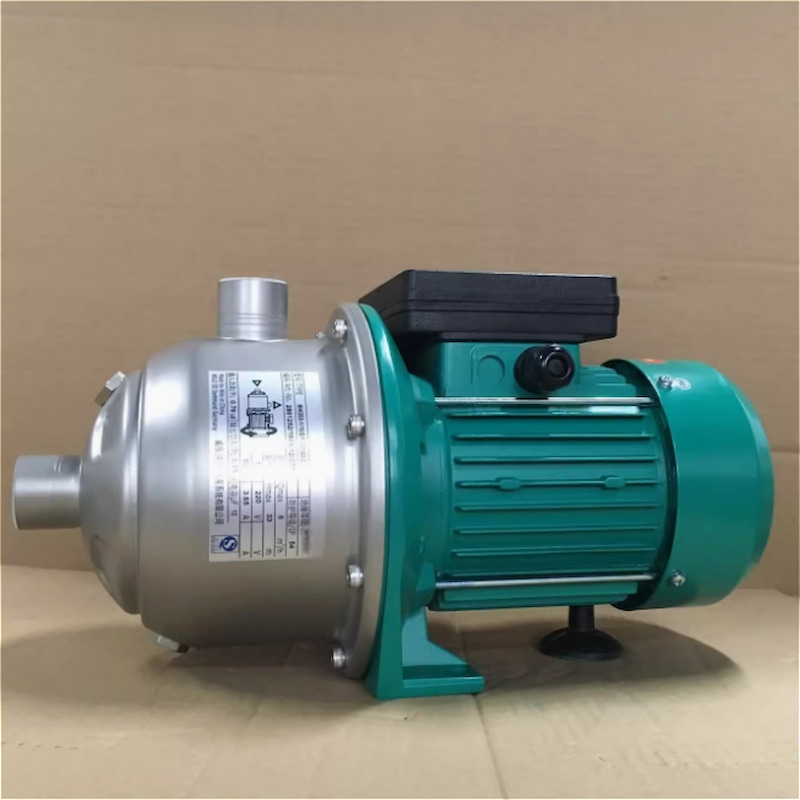

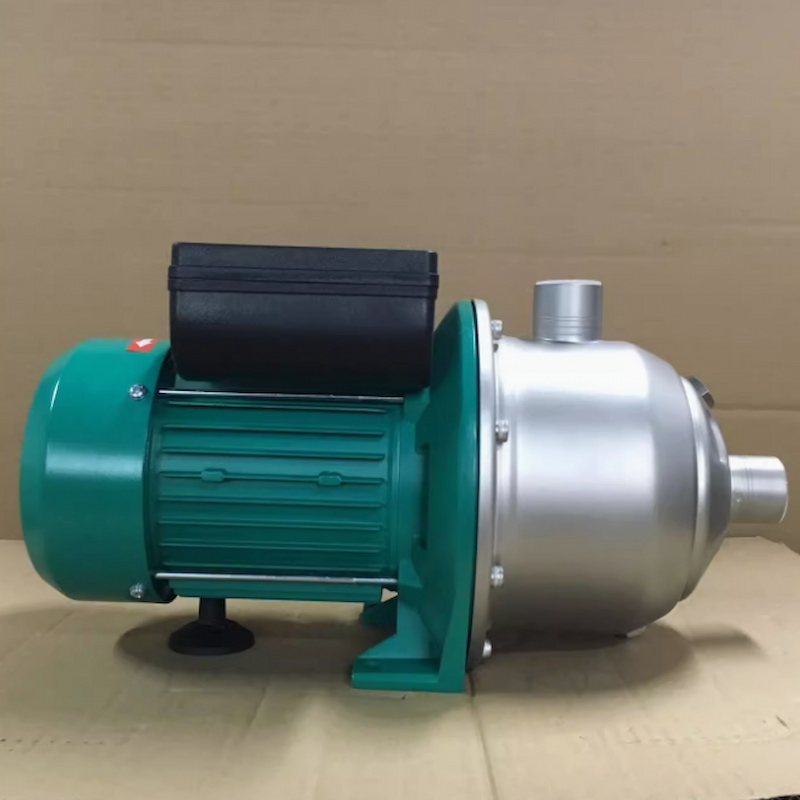

Horizontal multistage stainless steel pump
MHI200/400/800/1600 Series,MHIL200/400/800 Series
Feature:
Stainless steel materials
High pressure by multi-stage impeller
CQC certification
Application:
Water supply and pressure boosting
Hot water circulation and heating system
Air-conditioning systems
Industrial circulation system
Washing and sprinkling systems
For various machinery
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
