D(P), DF(P), MD(P) Horizontal Multistage Centrifugal Pumps (Self-Balancing Type)

Horizontal Multistage Centrifugal Pump

General Description

D(P)、DF(P)、MD(P) series horizontal multistage centrifugal pumps (self balancing type).the first stage is single suction or double suction multi-stage mechanism. The series of products are micro accelerated multi-stage centrifugal pump technology development, and meet the needs of users. On the basis of absorbing and digesting foreign advanced technology, combined with our company's research and development experience for many years, the product performance reaches the same level of similar products in the industry Advanced level, is the best substitute for ordinary multi-stage centrifugal pump.

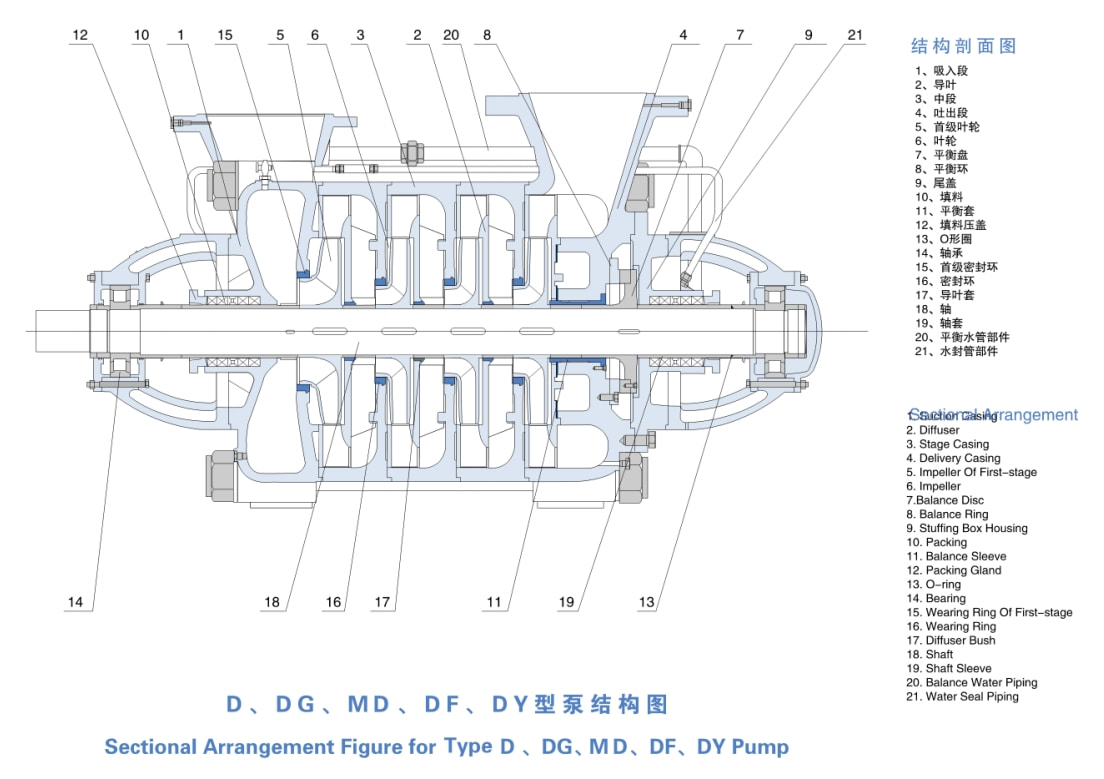

The typical characteristics of this type of pump are that the traditional balance disc system used to balance the axial force is completely eliminated in the structure, and the impeller is arranged symmetrically to balance the axial force automatically. This innovation makes the operation of multi-stage pump have the advantages of energy-saving,  high-efficiency, reliable balance, less vulnerable parts and greatly reduced operation cost.

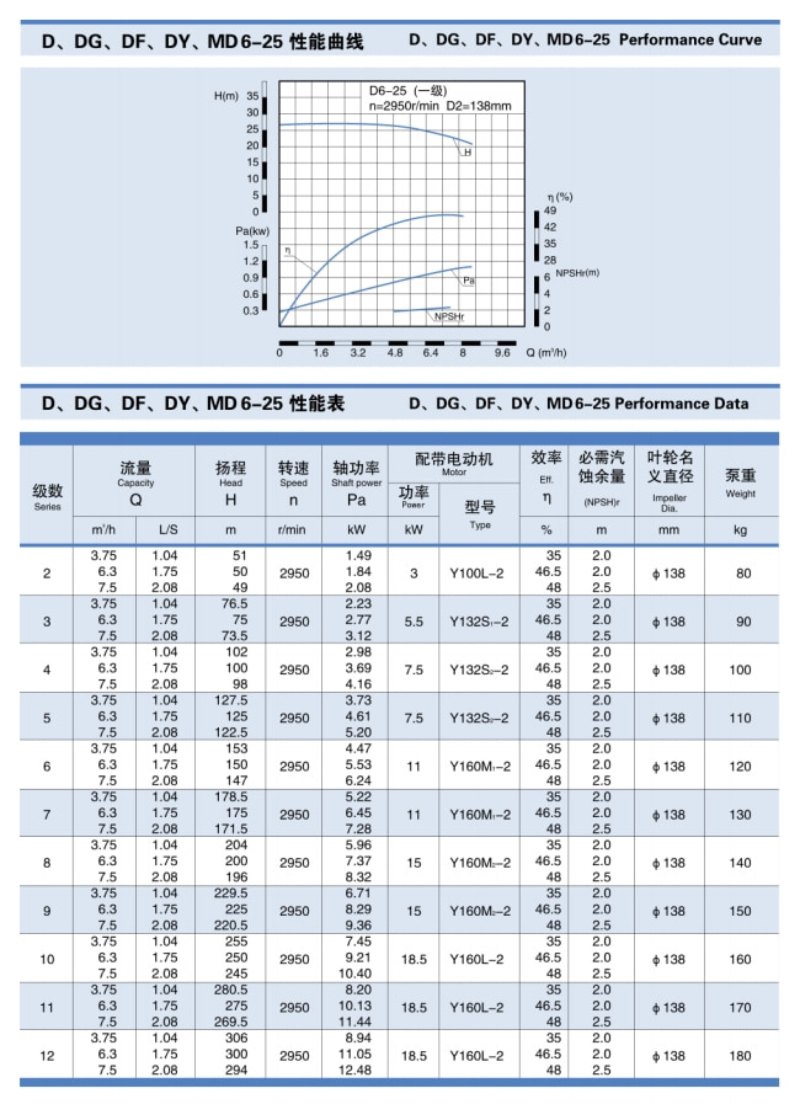

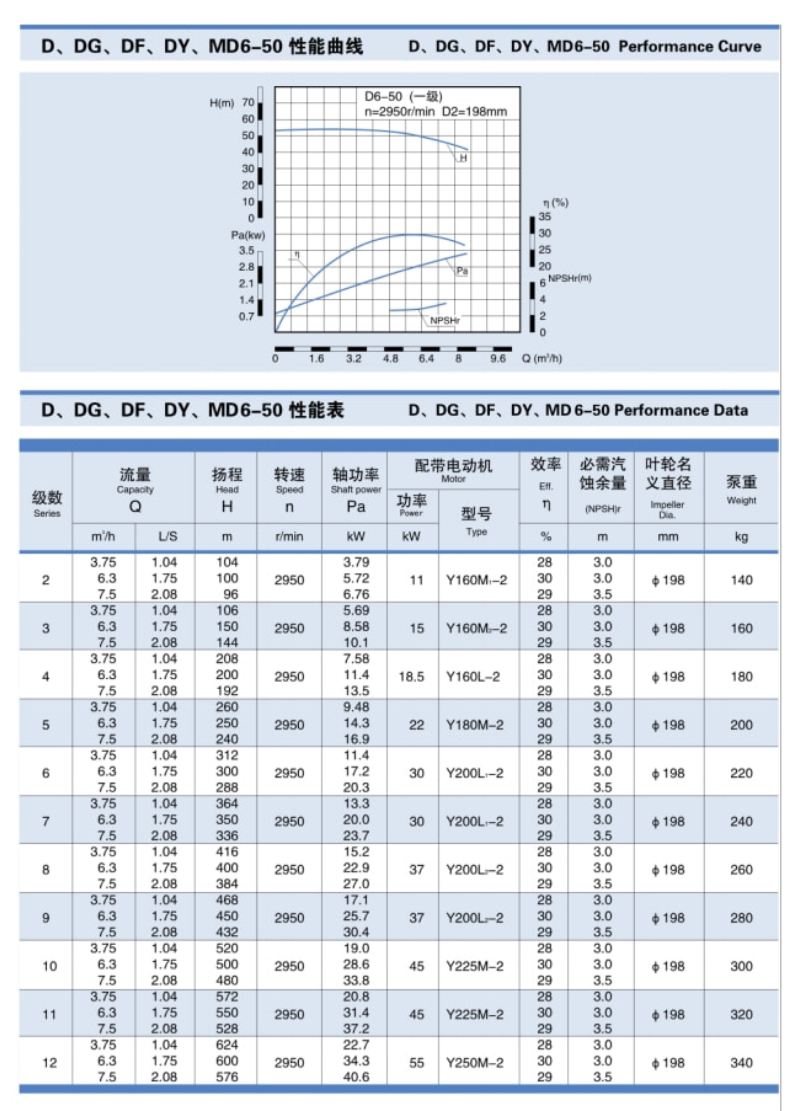

Parameter Range

Capacity: Q=3.75-1360m³/h

Head:92~1400m

Scope Of Application

 D(P) high efficiency and energy saving self balancing multi-stage pump is an advanced high-pressure multi-stage pump product with high efficiency, energy-saving and long service life designed to meet the needs of users. The birth of Sanchang self balancing multi-stage pump has changed the original design of multi-stage pump with balance device, and accelerated the technical development of high-pressure multi-stage pump. It adopts foreign high-efficiency and energy-saving hydraulic model and combines with our company With years of design experience, Sanchang self balancing multi-stage pump has stepped into a stage of high efficiency, energy saving.mature technology and stable operation.

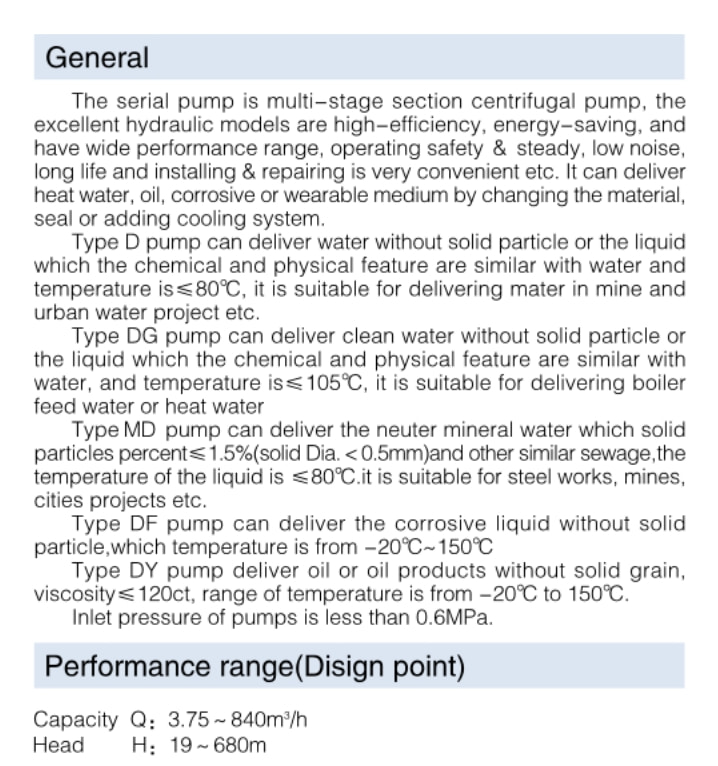

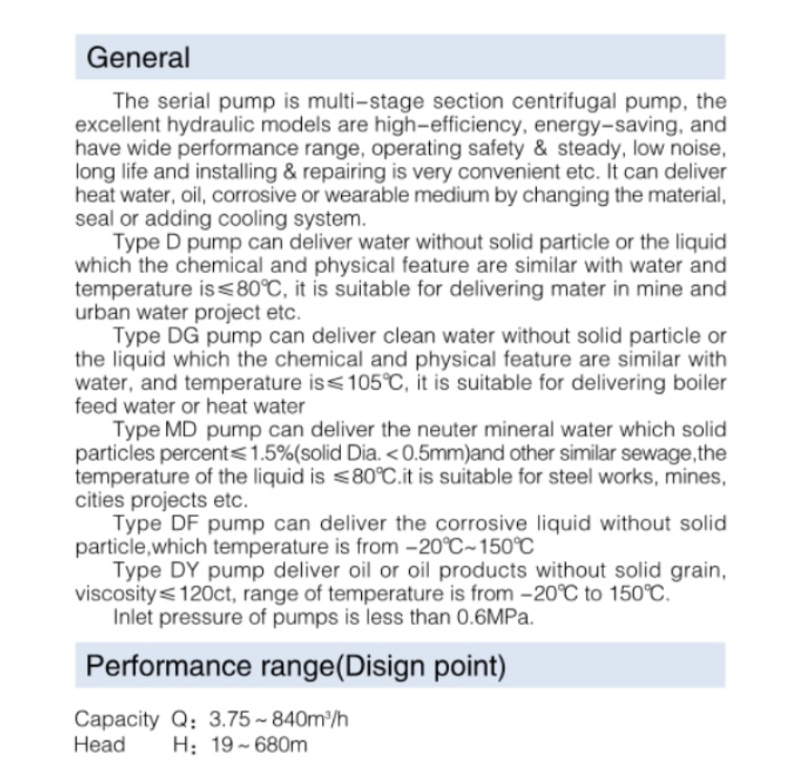

D(P) pump is a multistage, single suction, segmental centrifugal water pump. It is suitable for water supply  and drainage of mines, factories and cities. It is used to transport clear water without solid particles or liquid with physical and chemical properties similar to clear water. The temperature of the medium to be transported is - 20℃-80 ℃, and the allowable inlet pressure is not more than 0.6MPa.

DF(P) pump is a multi-stage, single suction, segmental corrosion-resistant centrifugal pump, suitable for conveying corrosive liquid without solid particles. The temperature of conveying medium is 20-105℃, and the allowable inlet pressure is not more than 0.6MPa.

MD(P) pump is suitable for mine, factory and urban drainage. It is used to transport neutral mine water or sewage with solid particle content ≤1.5%.  The temperature of the transported medium is 0 ℃-80 ℃.

Self-Balancing Multistage Pump Ten Advantages

New structure、New technology、Efficient、energy-saving、High reliability、Low maintenancecost and long life time、Excellent HPSH、Mechanical seal strong reliability、Easy Maintenance、Low Maintenance cost、Wide application
