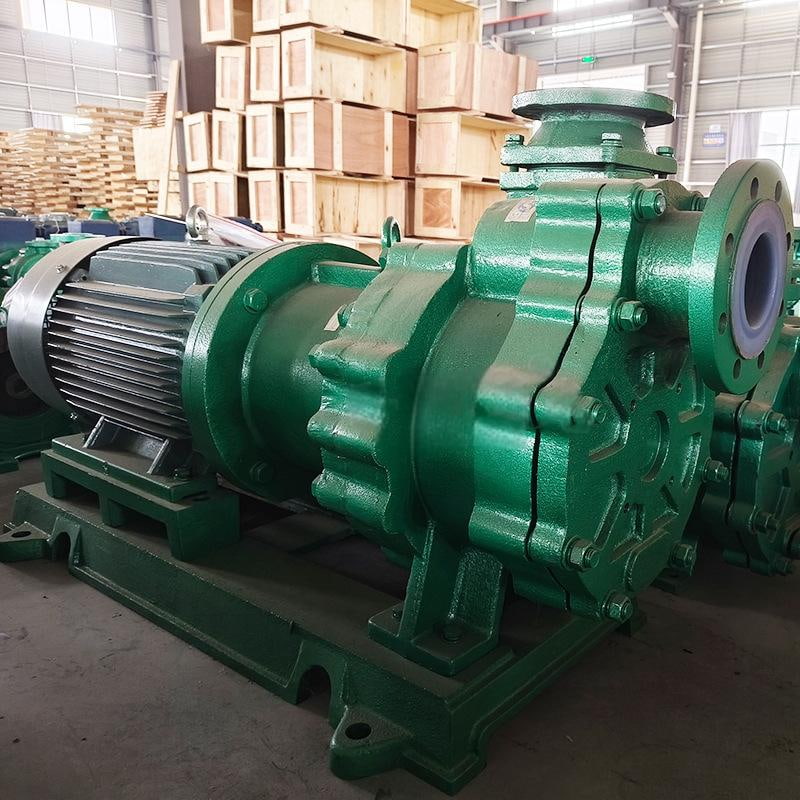

High-efficiency, energy-saving, easy-to-dismantle, corrosion-resistant magnetic drive pump with shaft seal.
Model :
WF 32-20-125FImported caliber (DN) :
32Export caliber (DN) :
20Rated flow (m³/h) :
3.2Rated head (m) :
20Motor speed (rpm) :
2900Motor power (kw) :
1.5Material :
WF 32-20-125FFOB Price （USD$） :
950WF series magnetic force-driven pump
No drip leakage
The shaft seal is cancelled, using the magnetic force coupling, indirect transmission, completely eliminate the phenomenon of leakage.
No magnetic vortex heat
The isolation reinforced sleeve made of reinforced carbon fiber or ETPU, with high strength mechanical properties, safe and reliable. The isolation sleeve of the all-plastic structure completely eliminates the magnetic eddy current phenomenon of the general magnetic pump, with no heat consumption, high efficiency and energy saving.
Easy disassembly
With the unique rear pull structure, one person can easily carry out internal maintenance and parts replacement, without removing the pipe, which greatly facilitates the daily overhaul and maintenance work.
Compact structure
Using the direct connection structure, the magnetic coupling is directly installed on the motor shaft, no rolling bearing loss, high efficiency, low noise. The whole pump machine occupies a small space, saves space, and is easy to install.

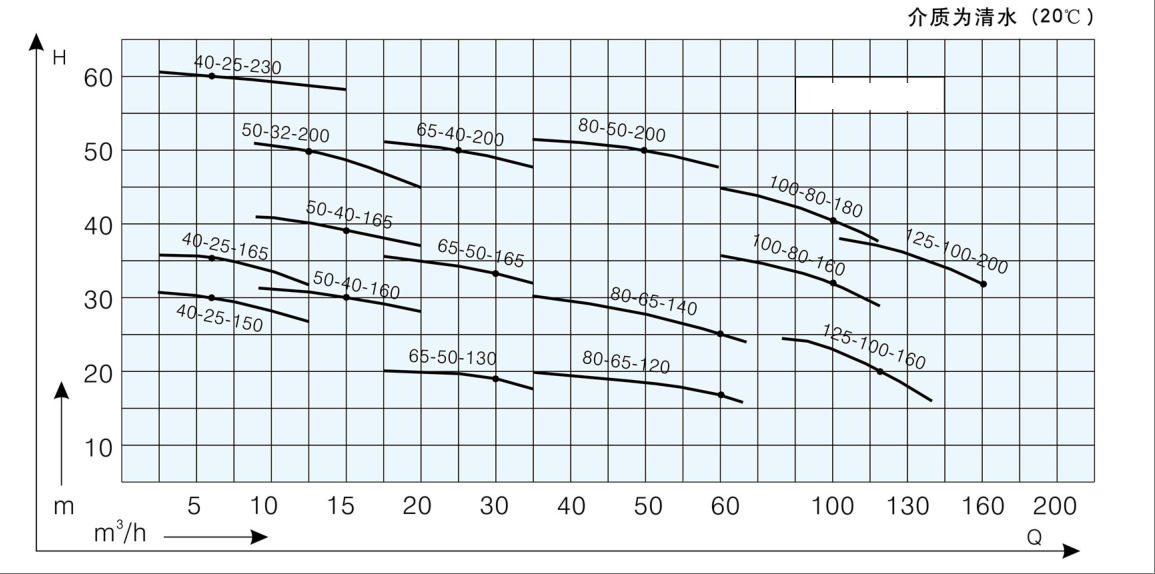

Parameter range:
Flow rate: 1~160m³/h
Head: 17~80m
Applicable temperature: -20℃ ~100℃
Use
Suitable for conveying strong corrosion, flammable, explosive, toxic, easy to play the chemical medium.
