CQB Fluoroplastic Magnetic Drive Pump

Fluoroplastic Magnetic Drive Pump

Design feature:

Leak proof design and working principle:

Cancel the shaft seal, the use of magnetic force coupling indirect drive, completely eliminate the trouble of dripping, never pollute the use site.

 Because the overcurrent part of the pump is made of "fluorine plastic alloy". It can continuously transport any concentration of acid, alkali, strong oxidant and other corrosive media without damage.

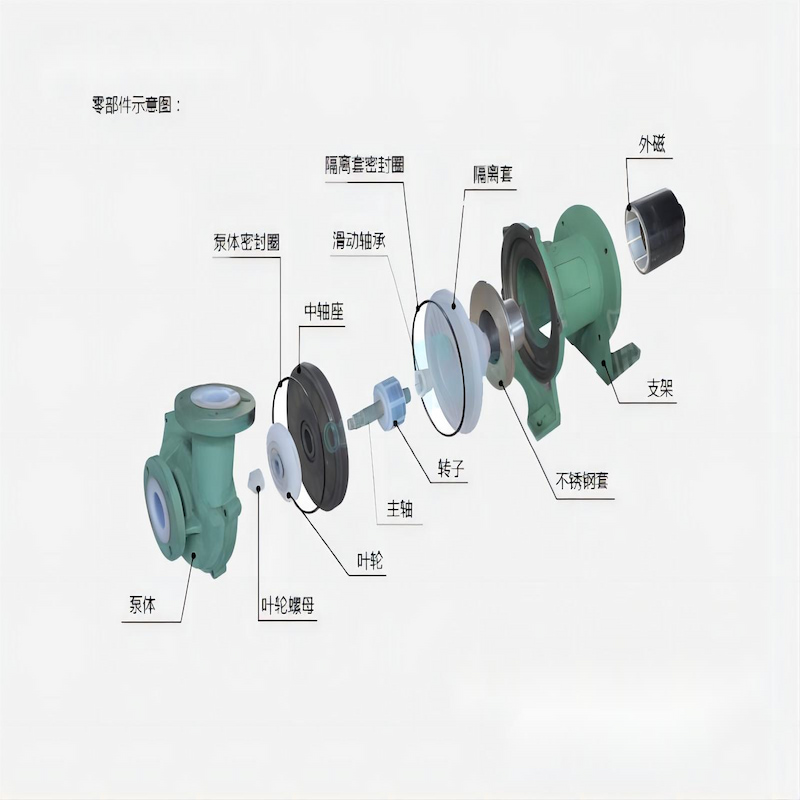

The driving device uses the active permanent magnet coupling directly installed on the motor shaft, the pump chamber is completely closed, and the impeller rotation is indirectly driven through the magnetic coupling. Compact structure, safe and energy-saving.

Robust and durable pump body structure:

Although the contact liquid part is fluorinated plastic, but the pump body shell is a metal material, so the pump body is enough to withstand the weight and mechanical impact of the pipe.

Parameter range:

Use temperature: -20～100℃.

Flow rate: 3 m3/h ～400 m3 / h

Head stage: 3.2m ～ 80m

Use:

This product is widely applicable to petrochemical industry, acid and alkali production, non-ferrous metal smelting, automobile manufacturing pickling process, rare earth separation, pesticide, dye, medicine, paper making, electroplating, radio and other industries.
