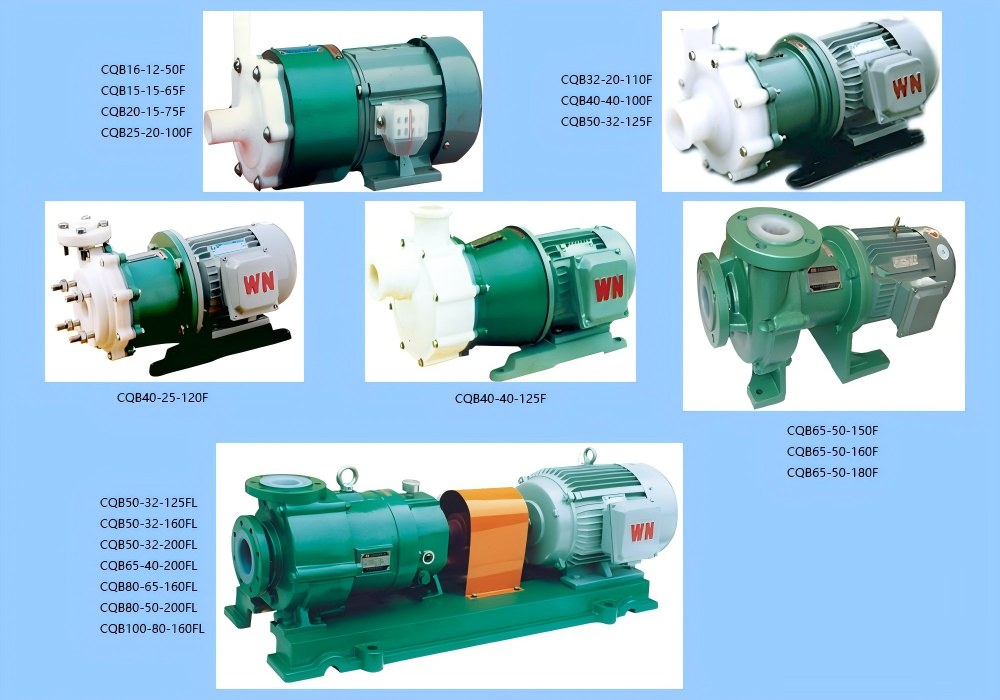

CQB catena of fluorine plastic magnetic force pumps

CQB catena of fluorine plastic magnetic force pumps

Using:

The product is widely used for industry of chem. Industry、making acid、making alkali、smelting、thulium 、agrochemical 、dyestuff、medicament、paper making、plating、washing with acid、wireless、industry of national defence etc. to transport acid、lye、oil、rare and valuable liquor、poisonous liquid、volatile liquid , especially used to ransport combustible、explosive liquid. More ideally to use in printing circuitry-board of electron industry and produce craftwork flow of cpd. Foil. The temperature in point ：-20℃～100℃.

Parameter:

★ Operating temperature：-20℃ ~ 120 ℃

★ Flow rate：3m3/h ~ 400 m3/h

★ Head：3.2m ~ 80m

Design for preventing leak:

Cancel axis-envelop, use of magnetic force coincidence to drive, eliminate trouble of dripping and leak completely, pollute usingplace in no case. Because throughpart of pump adopt " the fluorine plastics alloy" to make .It can continuously transport acid、alkali、strong oxidant etc. correlative corrosive medium of discretionary chroma but nowise damaged. It possesses excellence like overall airproof、no leak、resist causticity vigoroso etc.

The principle of operation:

With static seal to replace dynamic seal. Driveequipment use active magnet connected-implement to firsthand fix at the axletree of electrical engine, pumproom close completely, via magnetic force coincidence to drive impeller on rotor-assembled to circumgyrate indirectly, it own the trait like tightly structure、handsome exterior、small bulk、laigh noise、unfailingly move、expediently service using、safety and economize etc.

Pumpbody structure:

Pump touch with the liquid part is the fluorine plastics, but crust is metal stuff, so the pumpbody is enough to support the weight of pipepad and repel mechanically concussion.

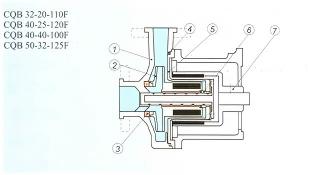

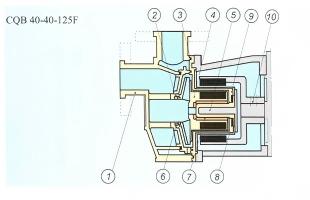

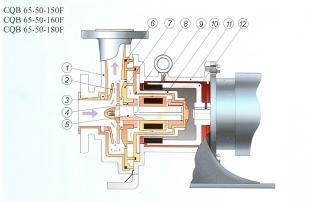

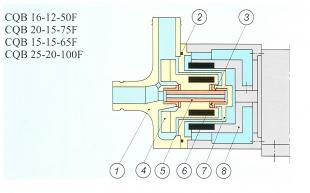

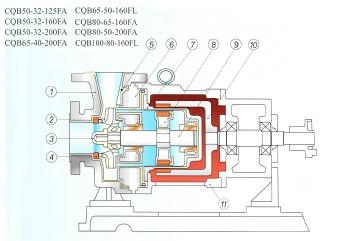

Structure and stuff:

Meaning of model number:

Model number and parameter:

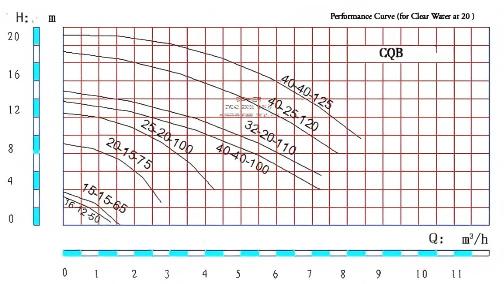

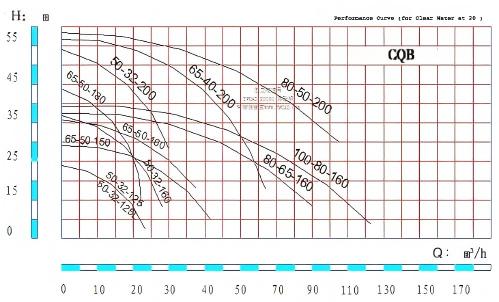

performance curve：
