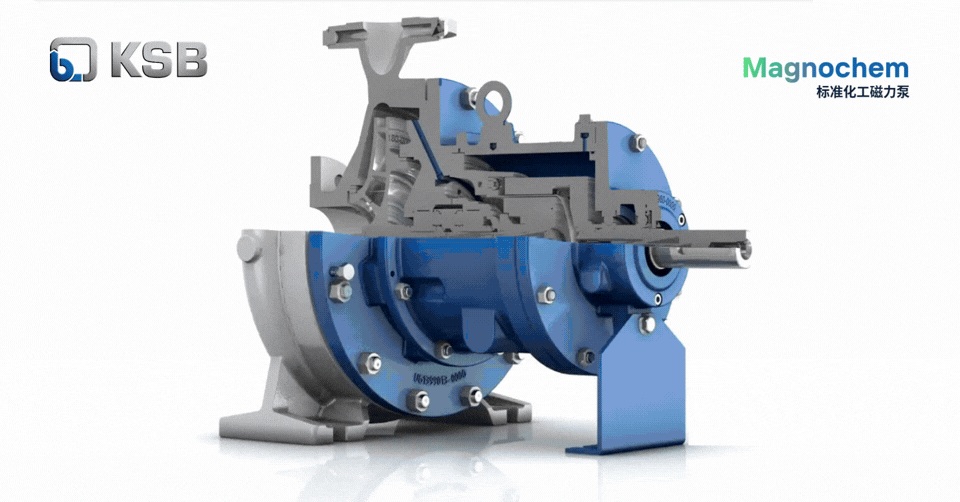

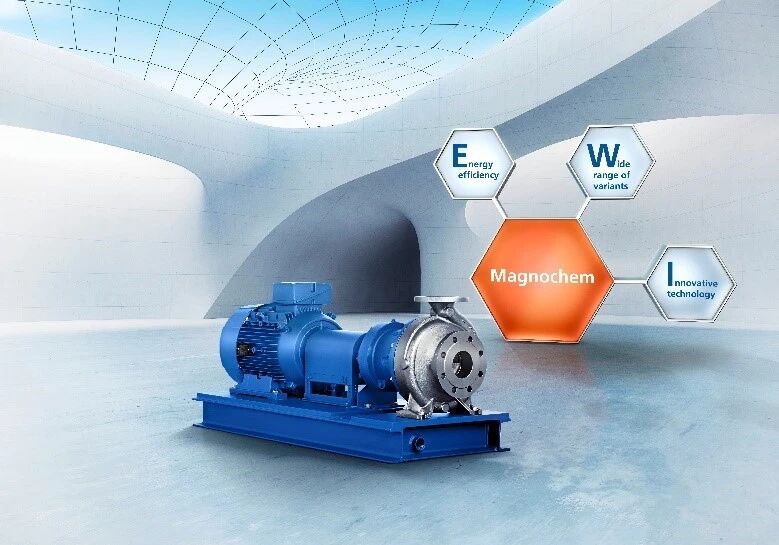

The KSB Magnochem is a horizontal shaftless magnetic drive chemical pump developed by Germany's KSB. Recognized as the gold standard for chemical magnetic pumps in the industry, it features zero-leakage safety, wide operating condition tolerance, ISO standard compliance, low energy consumption, and easy maintenance. It is suitable for transporting high-risk media such as toxic, explosive, and highly corrosive substances.
Core Technologies and Performance Parameters
Extreme Safety: Zero Leakage Commitment
Magnochem is engineered for extreme operating conditions. With its leak-proof technology, it can handle both highly corrosive organic solvents and high-concentration inorganic acid solutions with ease.
Multiple Coverage
Optional additional leakage barrier and lossless ceramic shielding cover are available.
Optionally equipped with silicon carbide-coated sliding bearings for optimized dry-running performance.
Magnochem boasts exceptional operational reliability and complies with various environmental protection requirements. The products strictly adhere to the European ATEX directive for explosion-proof applications, meeting ultra-high safety standards.
Excellence in Energy Efficiency: The Smart Choice
Under the dual carbon goals framework, Magnochem has demonstrated exceptional energy efficiency performance
Hydraulic optimization
An advanced hydraulic model that balances efficiency enhancement with cavitation protection.
Parameter Overview
| Flow Rate (Q) | |
| 50 Hz | Up to 1,160 m³/h |
| 60 Hz | Up to 1,400 m³/h |
| Head (H) | |
| 50 Hz | Max. 162 m |
| 60 Hz | Max. 236 m |
| Operating Pressure | Max. 40 bar |
| Temperature Range | -90°C to +400°C |
stock option
Cast steel, stainless steel, duplex steel, and custom special alloys.
Main Applications
chemical industry
cooling circuit
Hot water heating system
district heating
Petrochemical industry
Sugar industry
Industrial Circulation System
Pipelines and Oil Storage Tanks
Heat Carrier/Hot Oil Equipment
air conditioning unit
refining equipment
technology
Condensate transportation
process engineering
Superiority
High operational reliability:
Only static sealing is required
Optional leak prevention device
Protect the shielding cover through the starting installation devices on the outer rotor and inner rotor.
Self-draining shield cover
The pump does not need to be emptied when installing or removing the drive unit.
Wide range of applications:
Silicon carbide sliding bearing lubricated by the transported medium (optionally with DLC coating)
Hydraulic systems and magnetic couplings adopt modular design principles
Multiple operating modes are available
The pump casing and pump cover can be used for temperature control and heating.
Low maintenance cost:
Silicon carbide sliding bearing lubricated by the transported medium (no wear)
Lubricated rolling bearings with lifetime lubrication (operating for 30,000 hours at temperatures below 80 °C) or lubricated rolling bearings (35,000 hours)
Highly suitable for high medium temperatures:
The insulation device can achieve very low surface temperatures.
The heat sink can reduce the temperature of rolling bearings.
The optional fan impeller can extend the temperature range to 400°C.
Special measures can be implemented to ensure operation within the ATEX temperature class range below the medium temperature.
High safety is ensured through optional additional secondary and tertiary seals connected in series.
Targeted leakage discharge between barriers can be performed via optional interfaces.
Parts Drawing
Project Cases

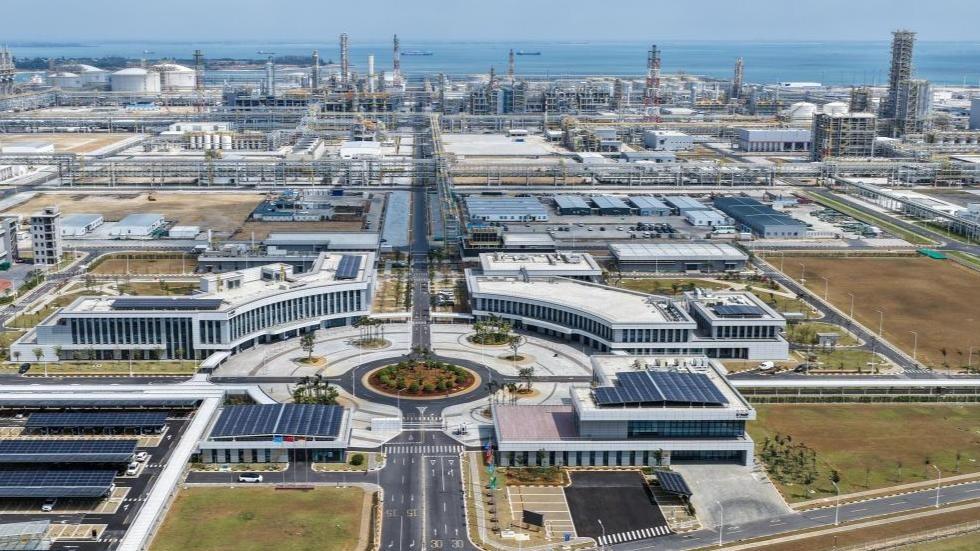

➤ A world-class integrated refining and petrochemical base in South China
In the high-standard chemical engineering project at this facility, the client has set exceptionally stringent requirements for equipment safety and stability.
KSB has supplied dozens of Magnochem pump sets, which have earned high acclaim for their exceptional corrosion resistance and zero-leakage performance, effectively supporting the base's safe and stable production operations.

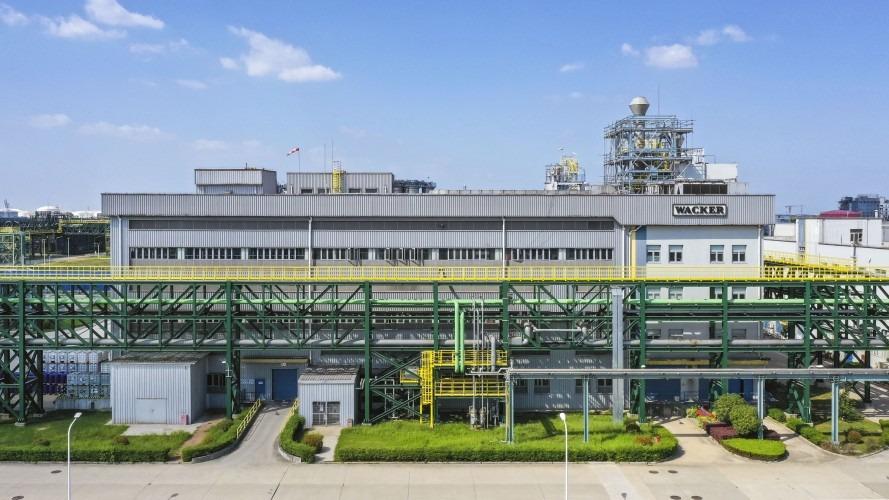

➤ A globally leading organic silicon production base in East China
As one of the world's largest silicone producers, this client faces complex dielectric material transportation challenges.
After the KSB Magnochem pump unit was deployed at the site, it not only eliminated potential medium leakage risks but also significantly reduced maintenance frequency and operational costs, becoming a core transportation solution for the production line.
KSB Magnochem is not only a technologically advanced leader in zero-leakage fluid transportation but also a trusted partner for your needs. KSB offers a comprehensive range of solutions, from traditional sealed pumps and magnetic drive pumps to shielded electric pumps, tailored to meet every requirement.
