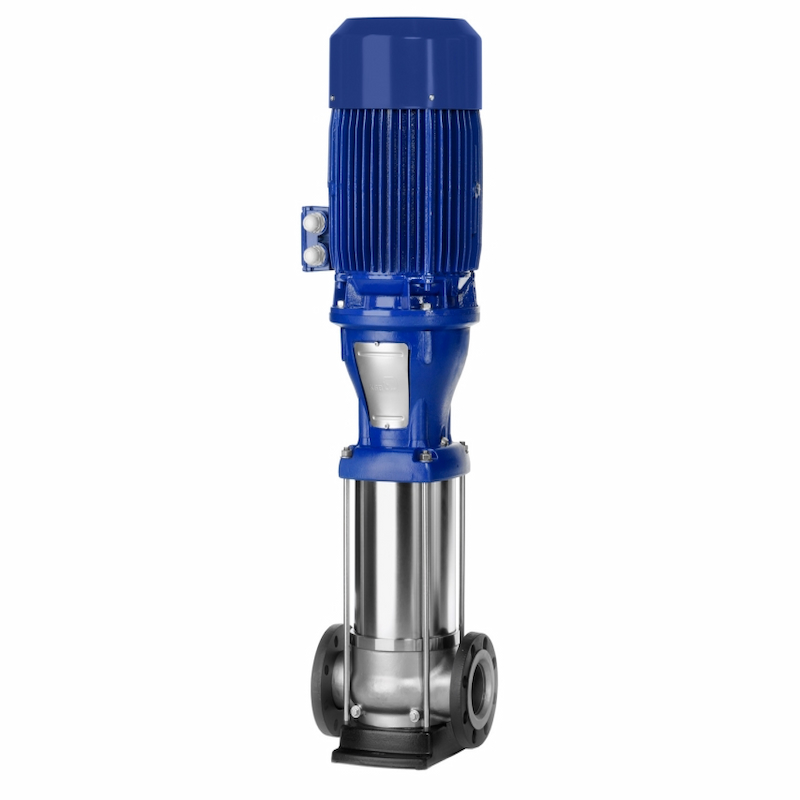

Laser pump alignment

    Proper pump shaft alignment is critical to preventing severe vibration, bearing wear, and premature mechanical seal failure. To align a pump in 5 steps:   1) Lock out power 2) Perform a rough visual alignment 3) Mount dial indicators or a laser alignment tool 4) Add or remove motor shims for vertical adjustment 5) Adjust horizontally, then perform a final torque and re-check   Even the highest quality industrial pumps will destroy themselves if they are improperly installed. Misalignment between the pump shaft and the motor shaft places immense stress on the coupling. Over time, this stress translates into excessive vibration, leading to catastrophic mechanical seal failure and broken bearings.   To ensure optimal industrial fluid control and extend the lifespan of your equipment, follow this 5-step guide to precision shaft alignment.   Step 1: Safety Lockout and Preparation   Before touching any mechanical components, completely lock out and tag out (LOTO) the motor's power supply. Clean the baseplate, the motor feet, and the pump casing. Remove any rust, dirt, or old shims that could cause a "soft foot" (where the motor does not sit perfectly flat on the base).   Step 2: Rough Visual Alignment   Do not attach the coupling yet. Place a high-quality straightedge across the coupling halves at the top, bottom, and both sides. Use this visual check to move the motor roughly into position. This saves time before setting up sensitive precision instruments.   Step 3: Mount Your Precision Tools   While traditional dial indicators are highly accurate, modern laser alignment tools are faster and eliminate mathematical calculation errors. Mount the laser brackets securely to both the pump shaft (stationary machine) and the motor shaft (movable machine). Rotate the shafts together to take readings at the 9, 12, and 3 o'clock positions.   Step 4: Correct Vertical Misalignment (Shimming)   The laser tool will indicate how far off the motor is vertically. To fix this, you must carefully add or remove stainless steel shims under the motor feet. Always use the fewest number of shims possible (ideally no more than three under one foot) to prevent a spongy foundation. Once shimmed, tighten the motor bolts to check if the vertical alignment is within the manufacturer's tolerance.   Step 5: Correct Horizontal Misalignment and Final Check   With the vertical height corrected, gently tap the motor side-to-side using jack bolts (never hit the motor with a heavy hammer) to achieve horizontal alignment. Once both horizontal and vertical axes are in the green zone on your laser tool, fully torque down all motor bolts. Crucial: Always do one final laser sweep after tightening the bolts, as the torquing process can slightly shift the motor.
