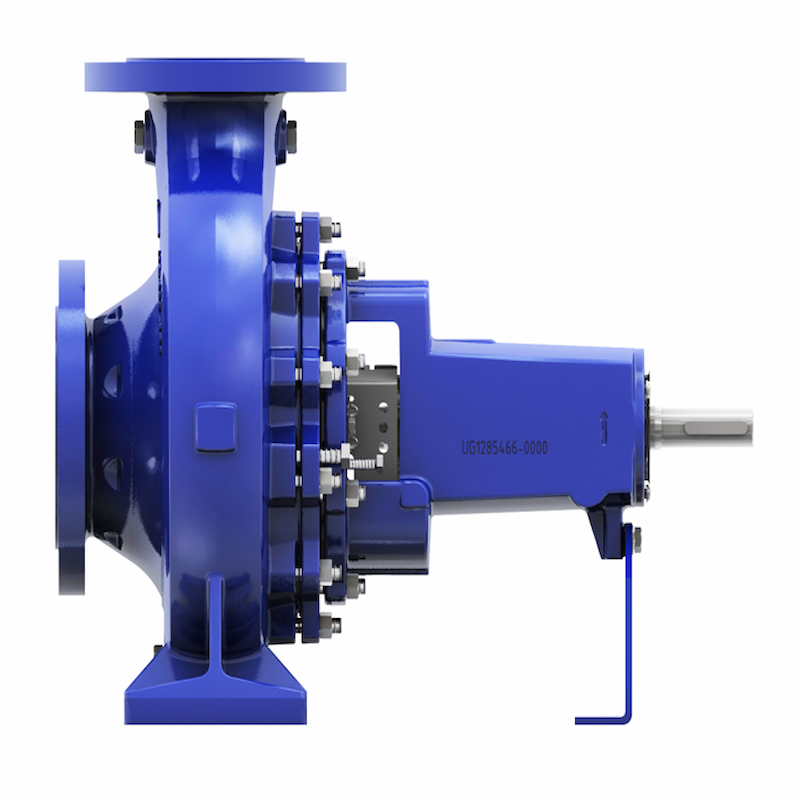

Net Positive Suction Head (NPSH) is the measure of pressure available at the suction side of a pump to prevent the liquid from boiling and causing cavitation. To ensure safe operation, the NPSH available (NPSHa) in your system must always be strictly greater than the NPSH required (NPSHr) by the pump manufacturer.
For many young engineers and procurement managers, Net Positive Suction Head is one of the most confusing terms in fluid dynamics. However, misunderstanding this concept is the leading cause of pump cavitation, which can destroy a brand-new impeller in a matter of weeks. Here is a simplified breakdown of what NPSH means and how to calculate it.
NPSHr vs. NPSHa: What is the Difference?
There are two sides to the NPSH equation: the pump's requirement and the system's reality.
● NPSHr (Required): This is determined by the pump manufacturer. It is the minimum pressure required at the suction eye of the impeller to keep the fluid from vaporizing. You will find this value on the manufacturer’s centrifugal pump performance curve.
● NPSHa (Available): This is determined by your specific piping system. It is the absolute pressure of the fluid available at the pump inlet, minus the vapor pressure of the liquid.
The Golden Rule of NPSH
For a pump to operate smoothly without cavitating, the formula is simple: NPSHa > NPSHr. Generally, engineers recommend that NPSHa should be at least 1 meter (or 3 feet) higher than NPSHr to provide a safe operating margin.
How to Calculate NPSHa
While exact calculations require engineering software, the basic formula is:
NPSHa = Atmospheric Pressure + Static Head (or Lift) - Friction Loss - Vapor Pressure
1. Atmospheric Pressure: The pressure of the air pushing down on the fluid source.
2. Static Head: The physical height of the fluid above the pump centerline. (If the pump is pulling fluid up from a pit, this becomes a negative value).
3. Friction Loss: The pressure lost as fluid rubs against the inside of the suction pipes, elbows, and valves.4. Vapor Pressure: The pressure at which the liquid boils. Hotter liquids boil easier, meaning they have a higher vapor pressure, which drastically lowers your NPSHa.
Why This Matters for Your Factory
If your NPSHa falls below the NPSHr, the fluid will instantly turn into vapor bubbles inside the pump. As these bubbles hit the high-pressure zone of the impeller, they collapse with immense force, tearing away metal and ruining the mechanical seals. Always calculate your system's NPSHa before ordering a new pump to guarantee a long, maintenance-free lifecycle.
