In order to solve the problem of stable and safe rural drinking water supply in some towns and villages in the county, AOLI Machinery Group adopts a customized integrated pressure pump station solution to provide more stable and reliable water supply for surrounding residents, injecting strong impetus into the long-term and healthy development of the regional economy.

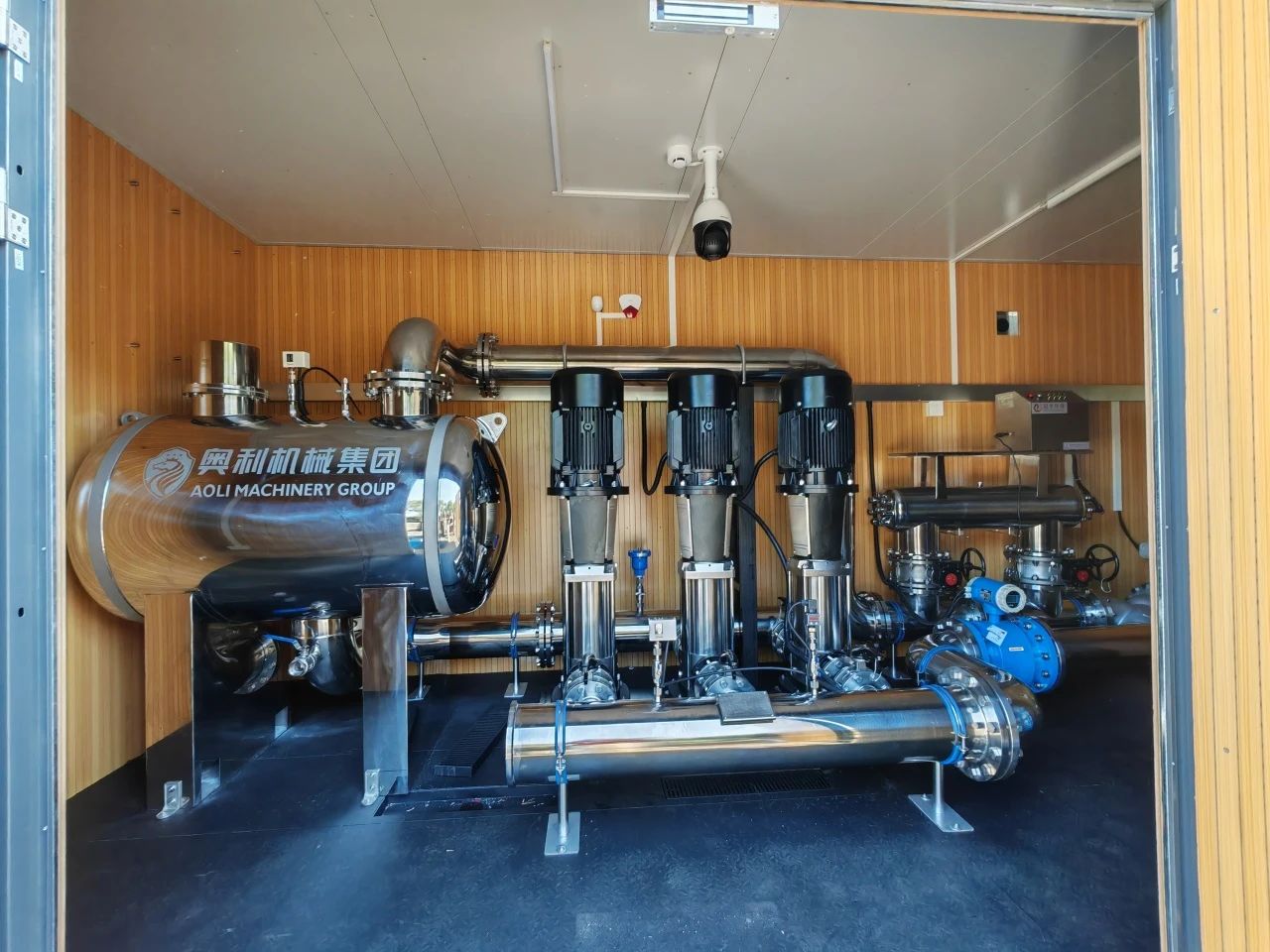

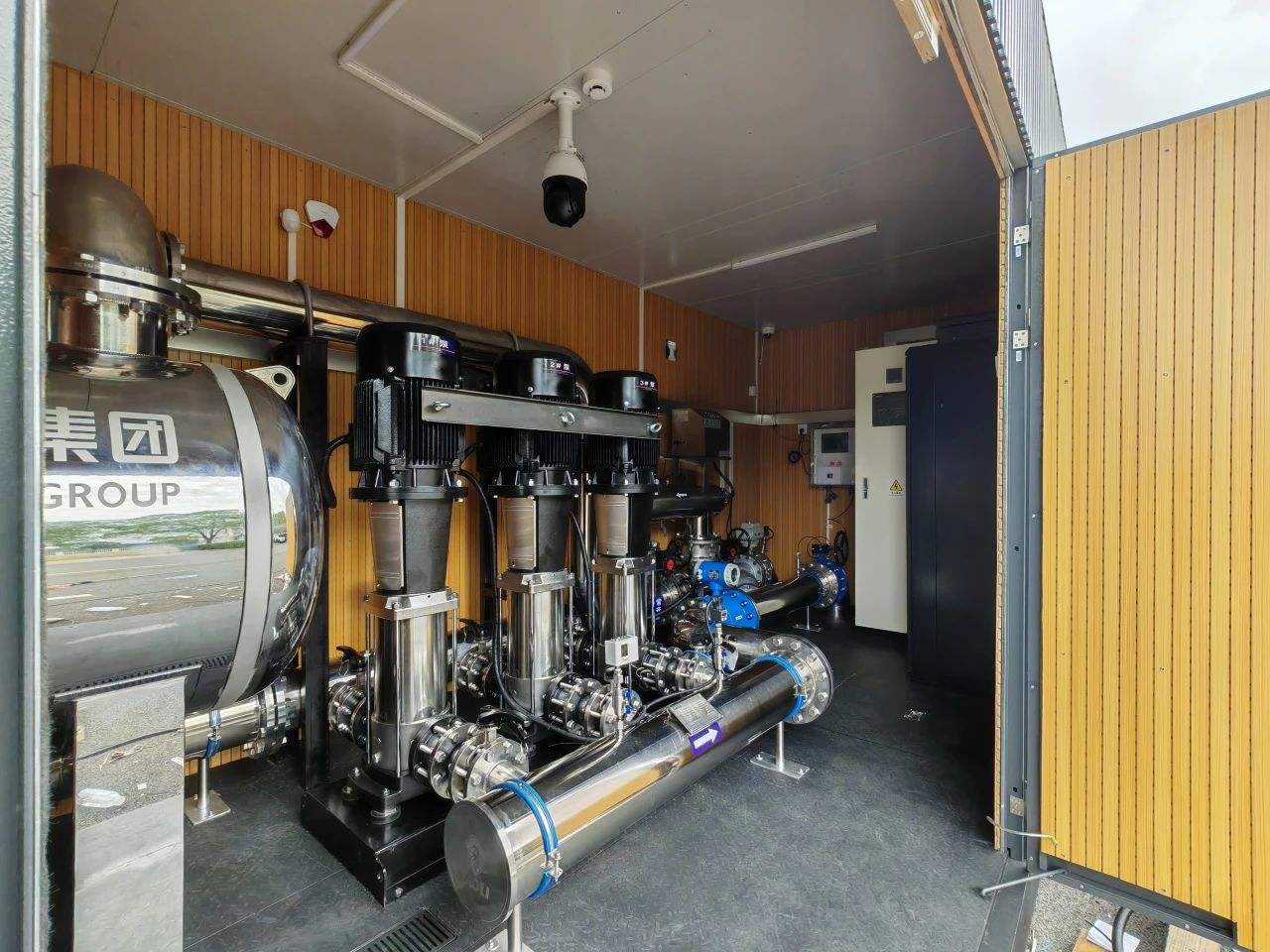

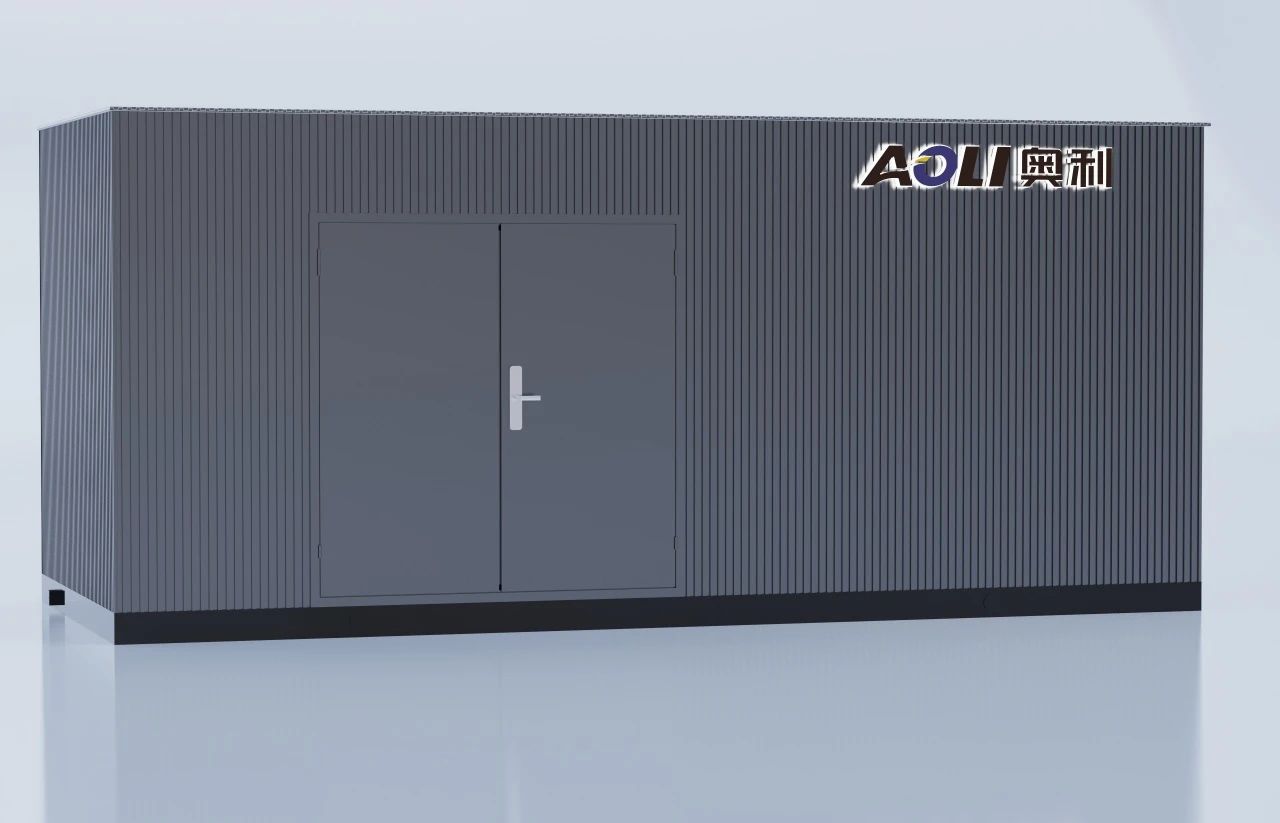

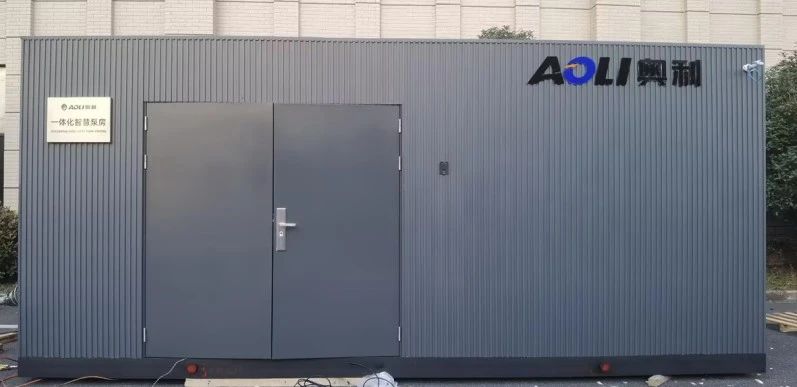

AOLI customized integrated booster pump station
This pump station can provide 80 tons of water per hour. Its box adopts an integrated aluminum corrugated core composite aluminum plate corrugated structure and has the following functions and features:

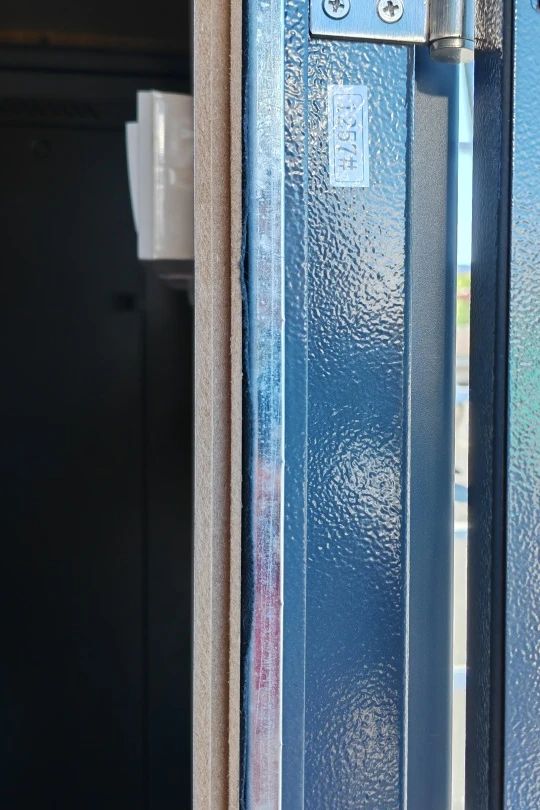

1.Four-layer protective composite structure
It has the functions of heat preservation, moisture-proof, sound absorption and fire prevention.
The pump station adopts 50-80mm thick rubber and plastic insulation to ensure that the station can operate normally in an environment of -30℃-+60℃;
The tin film adopts 0.2-0.3mm thickness, and the interior surface adopts moisture-proof and sound-absorbing board, with fire prevention grade B1;
2.Comprehensive control system

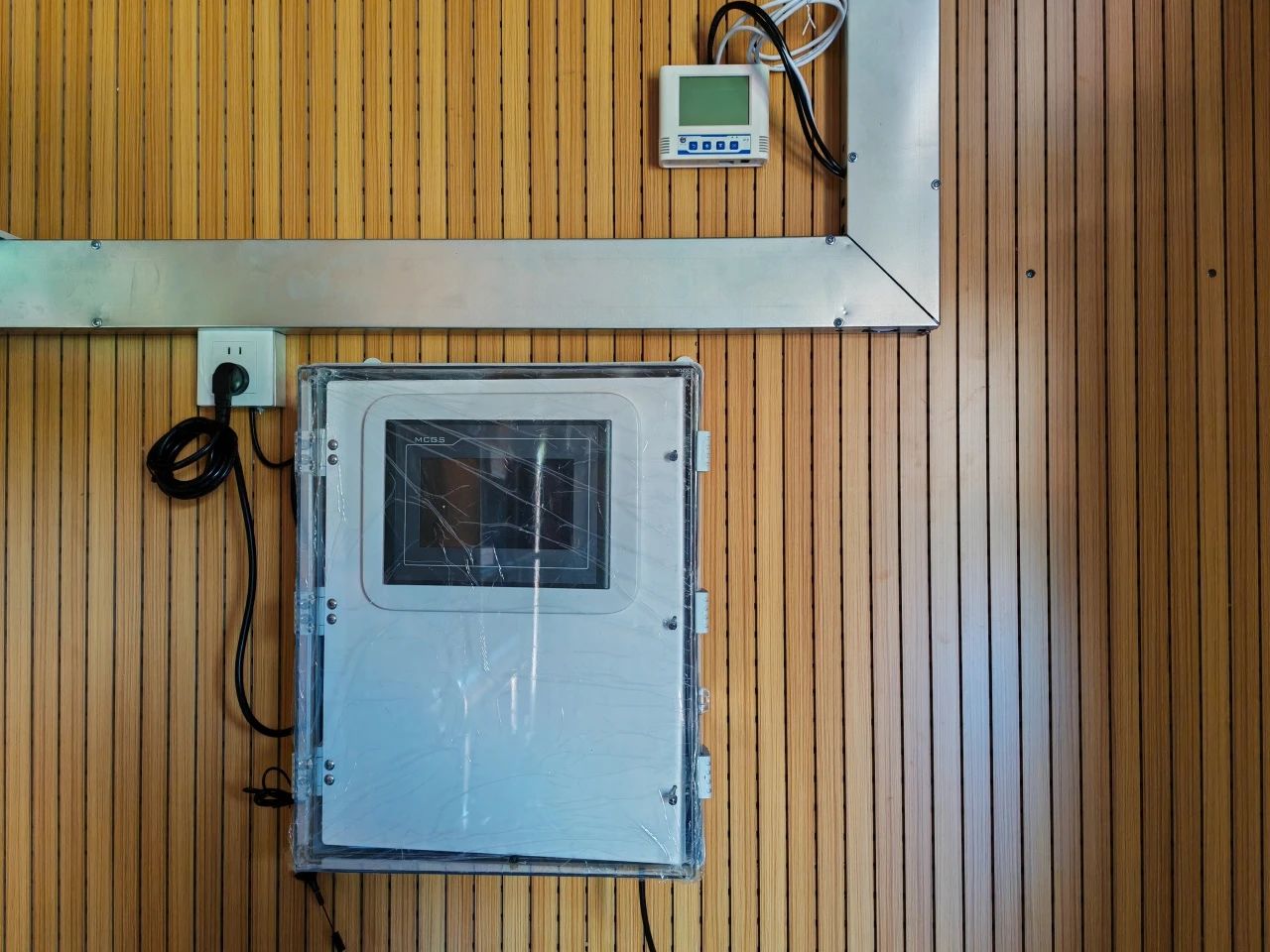

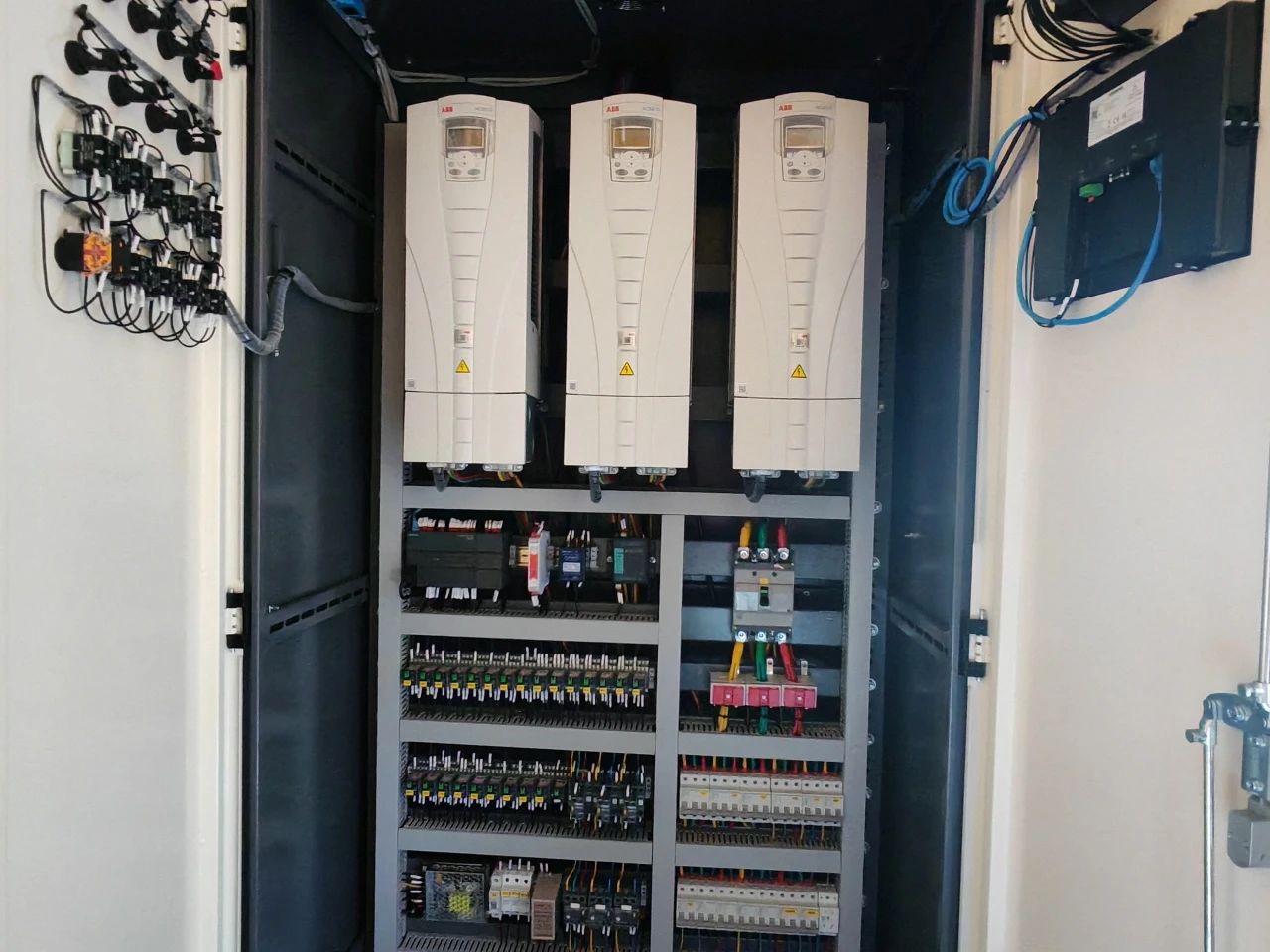

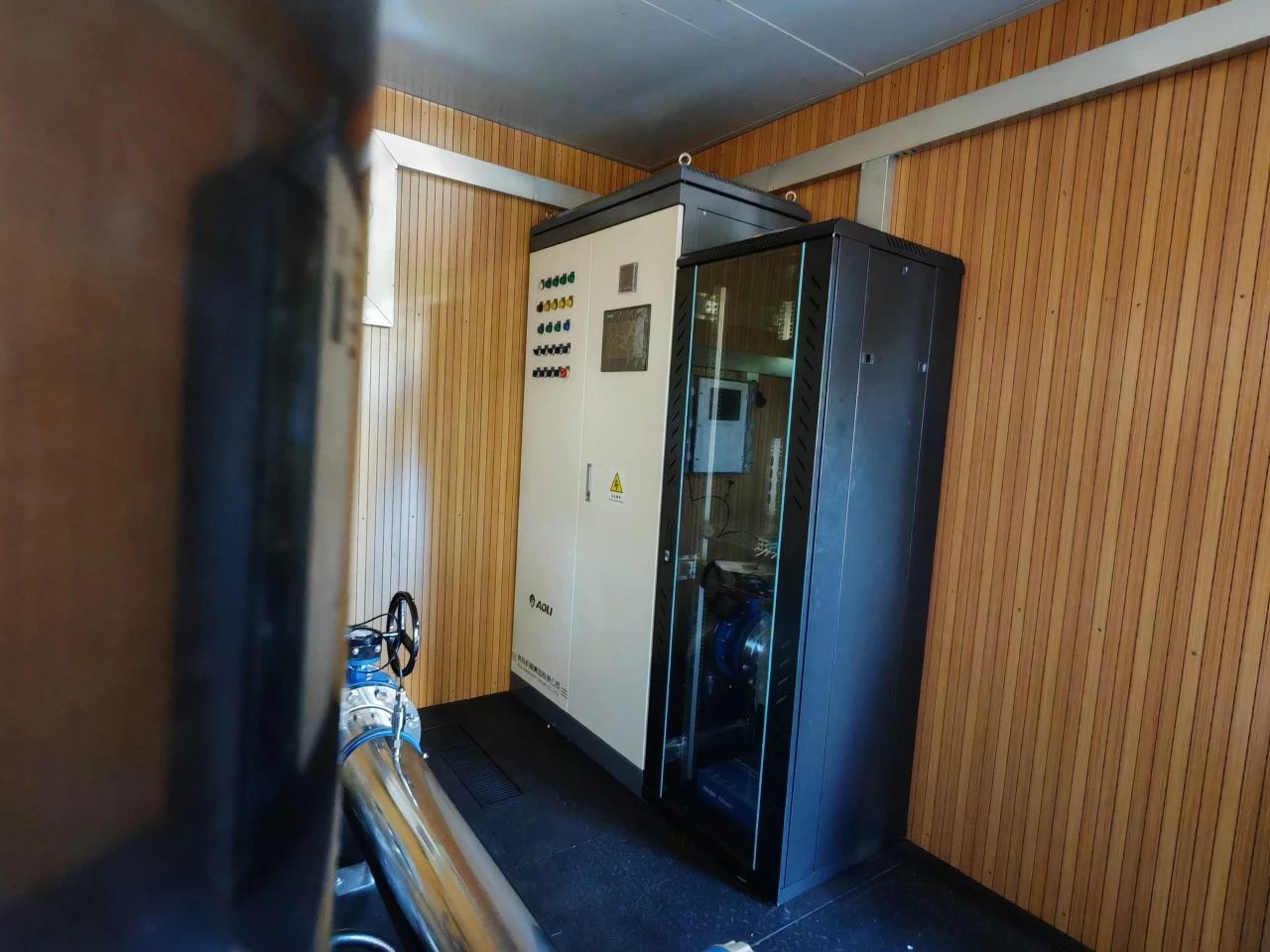

Control system

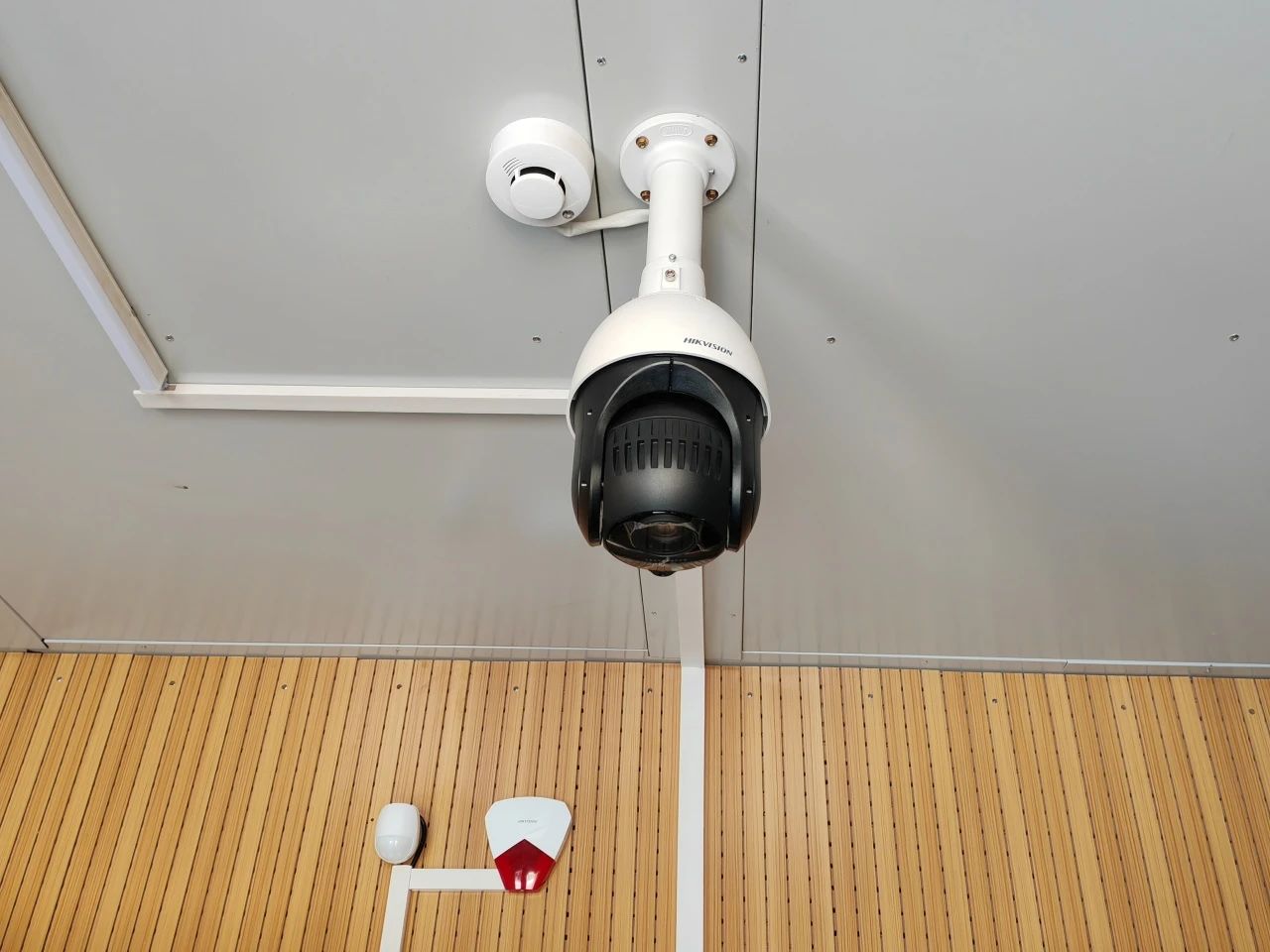

It adopts the three-level control mode of "local, on-site automatic, and remote", and has the functions of automatic pressure maintenance, water tank replenishment volume control, remote monitoring system access, and real-time monitoring of pipe network pressure, to ensure the safe and stable operation of the pump station.
3.Standardized and modularized production methods

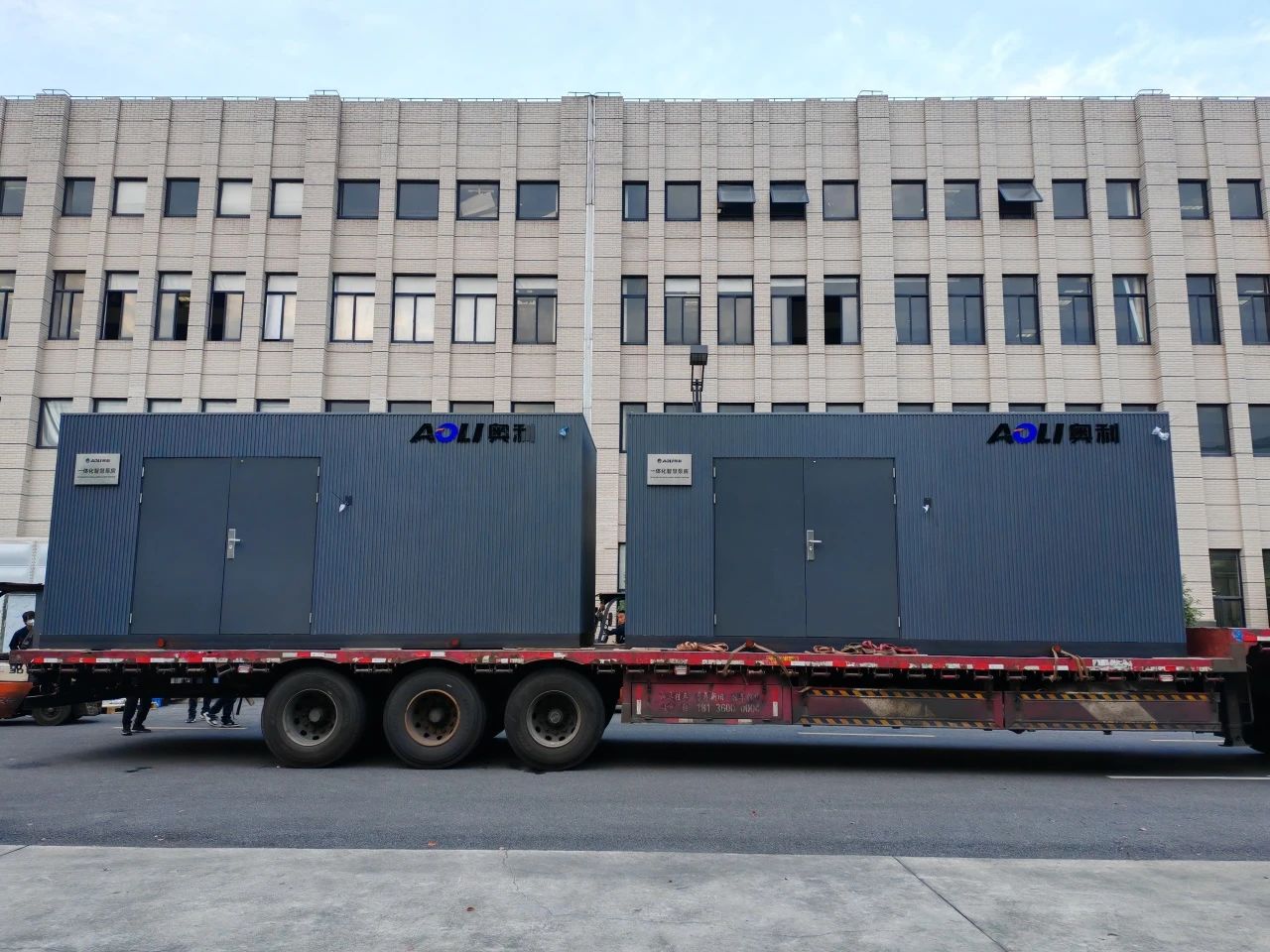

The integrated box frame has been subjected to stress simulation analysis to meet the pressure and load-bearing requirements of the overall hoisting, transportation and operation of the pump station. It can be transported to the site as a whole, hoisted and installed as a whole, and water supply can be realized by connecting water and turning on electricity.
4.Compact structure, small space occupation

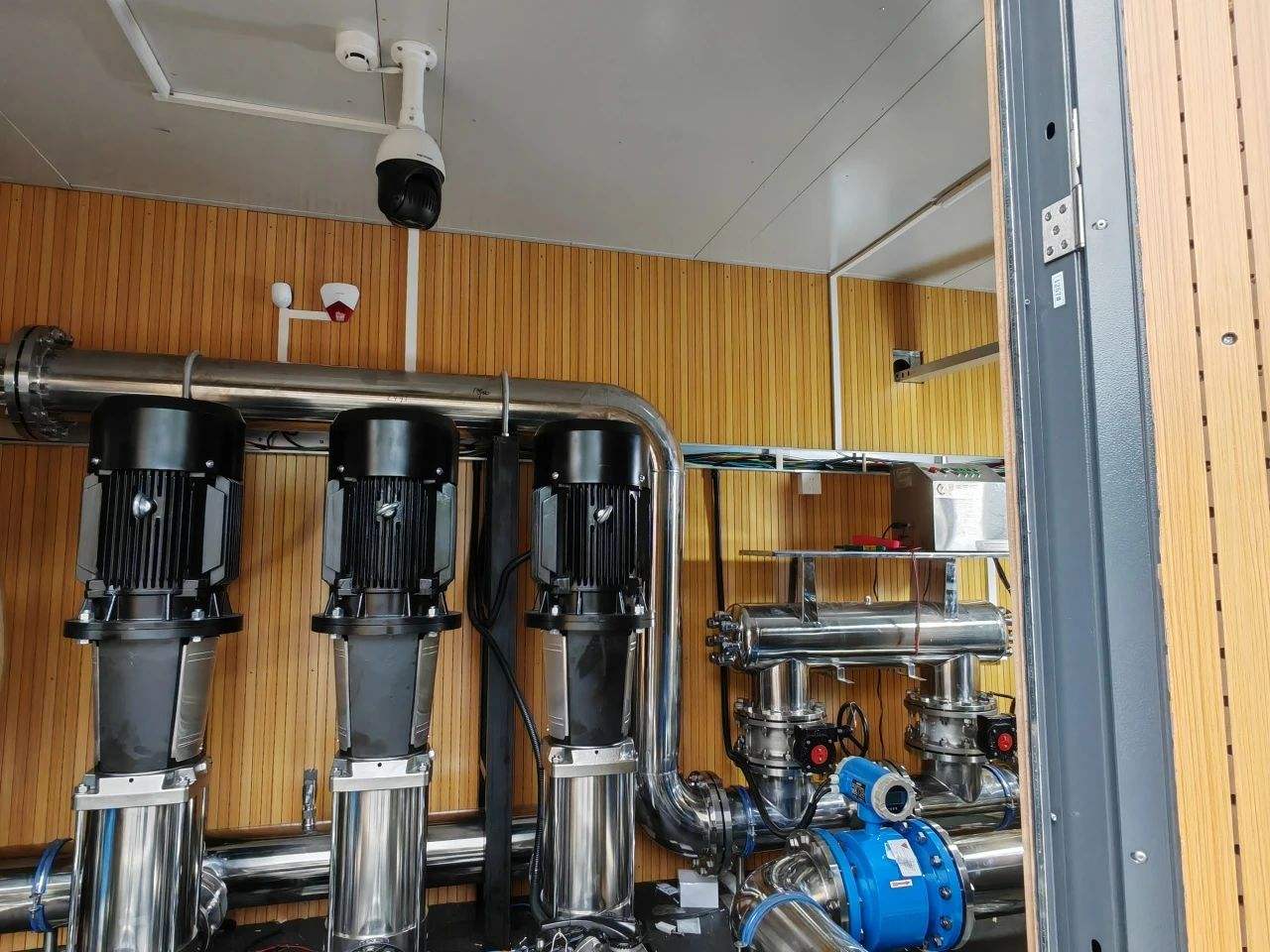

The pump station uses a water pump with intelligent peak-shaving, self-priming, anti-dry-running, anti-cavitation, and an embedded swing micro-return valve structure, making the structure more compact, the equipment highly integrated, and reducing the space occupied by the equipment.
Combined with the unique on-site environment, we design customized solutions. Aoli knows that every project is related to the owner's trust in Aoli's quality and service. Based on this, Aoli has always been committed to providing heartfelt services, from solution design to factory processing, every link is meticulous and strives for excellence to ensure high efficiency and high quality.
